Waterproof 2 4 6 8 12 Port Multiport Service Terminal MST Box Corning Opti-Tap FTTH FTTA NAP for OptiTap Connector

    The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.
Availability:
Inquire Add to Basket

  • IP 68

  • Wanbao

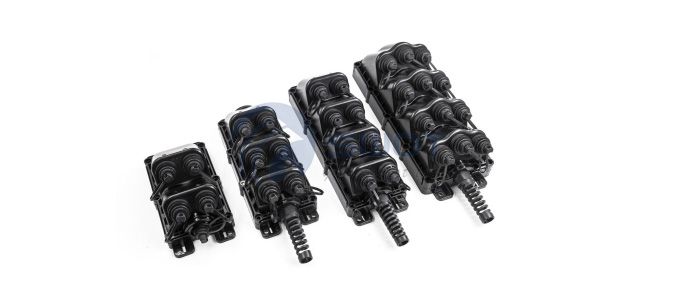

    微信图片_2025010915


Description

    The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

Features

&Each box can be fully assembled to reduce the need for opening and opening the field in the field.
&Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.
&Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.
&Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.
&Factory terminated IP68 rated, high quality, high performance connectors.
&Flexible choice of ports: 2, 4, 6, 8 terminals are available.
&Kind of mounting bracket allowing for a wide range of mount options.



Specification

Port4, 6, 8, 12
Product TypeAccess Terminal
IP RateIP68
Components CompliantRoHs
Operating Temperature-40 to +85℃
AdapterOptiTap SC, OptiTap LC Duplex, OptiTap MPO
EntranceCable gland or OptiTap adapter
Feed Cable1, 2, 4, 6, 8, 12 cores for options
Feed Cable LengthCustomized
Stub TypeStub Tail
Mounting MethodHand-hole, Pedestal, Pole, Strand, Aerial

Cable Specification

Cable TypeFlat drop cable
Cable Size4.5x8.0mm; 4.5x12.0mm
Cable Quantity1
Cable Stub Length50 meter to customized
Attenuation, maximum0.30 dB/km @ 1550 nm | 0.40 dB/km @1310nm
Directivity, minimum60 dB
Wavelength Range1260–1635 nm
IL,Terminal Connector, max0.4dB
Return Loss, Connector, minimum65dB

ItemDimension
4Port210.8x111.4x87.8mm
6Port267.5x112.0x89.0mm
8Port337.4x112.0x92.5mm
12Port364.7x138.9x110.2mm
