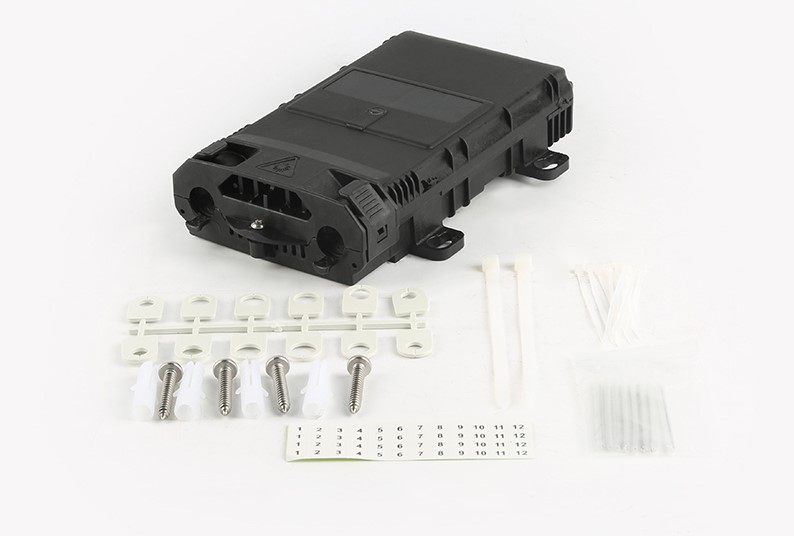

FTT-H1816X 16 Port Gel FTTH Optic Terminal Box


Capacity: 16 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount
Availability:
  1. Made of high quality engineer plastic material (PP), IP68 waterproof type, Good mechanical strength, Elegant appearance, sturdiness and durability.

  2. Suitable for indoor or outdoor, wall-mounted, pole installation.

  3. Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.

  4. Fiber routing is reasonable.

  5. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.


Model

FTT-H816X

Sealing

IP68

Adapter

16 pcs of SC

Cable Ports

3ports inlet port,   16ports outlet port

Applicable Cable   Diameter

4~20mm

Applicable Cable   Diameter

2*3mm FTTH Drop Cable,   2*5mm Figure 8 FTTH Drop Cable

Dimension(±5mm)

A*B*C(mm)

300*210*105

Derrick installation size D*E*F(mm)

190*227*142

Material

PP+gel

Maximum Splicing   Capacity

32 fibers

Color

Black

Pull Force

100N

Mid Span Entry

yes

Storage(Tube/Micro   Cable)

yes

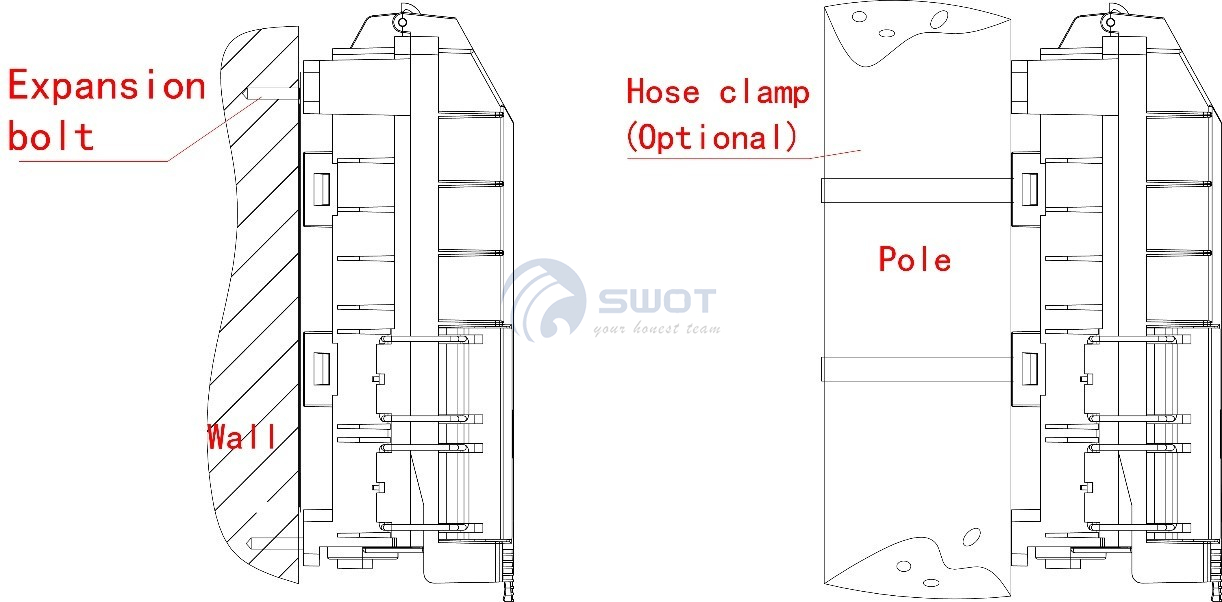

Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.

Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole, as below.

FTT-H1816X mounting


HTB10MSZtqQoBKNjSZJnq6yw9VXaV
