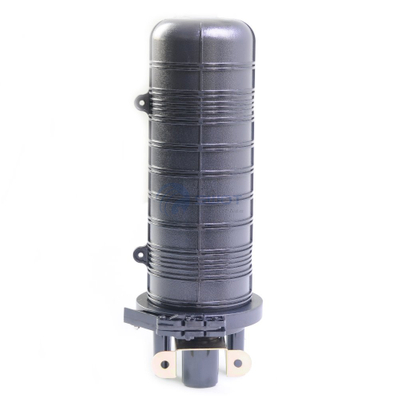

Fiber Optic Splice Closure


Product Name: Air-blowing Micro Cable
Fiber Type: Singlemode,Multimode,om1,om2,om3
Fiber Count: 2-24 Core
Outer Sheath Material: PE,HDPE,MDPE,LSZH
Applications: Reconstruction of old power lines and low voltage level lines. Coastal chemical industrial areas with heavy chemical pollution
Applicable Voltage Range: Power lines with voltage level of 220KV and below


This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.


The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.



Basic structure and configuration

1. Dimension and capacity

Outside dimension (Height x Diameter) 435mm×190mm
Weight (excluding outside box) 2350 g— 2600g
Number of inlet/out ports 4 pieces in general
Diameter of fiber cable  Φ8mm~Φ25 mm
Capacity of FOSC Bunchy: 12-96 (cores), Ribbon: up to 288 (cores)


2. Main components

No. Name of components  Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole

Height x Diameter

355mm x 150mm

2 Fiber optic splice tray (FOST)

Max. 6 trays (bunchy)

Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set After inject air, it is used for  pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per requirement


3. Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve
Protecting fiber splices Configuration as per capacity
2 Nylon tie
Fixing fiber with protective coat Configuration as per capacity
3 Heat shrinkable fixing sleeve (single)
Fixing and sealing single fiber cable Configuration as per requirement
4 Heat shrinkable fixing sleeve (mass)
Fixing and sealing mass of fiber cable Configuration as per requirement
5 Branching clip
Branching fiber cables Configuration as per requirement
6 Earthing wire 1 piece Putting through between earthing devices
7 Desiccant 1 bag Put into FOSC before sealing for desiccating air
8 Labeling paper 1 piece Labeling fibers
9 Special wrench  1 piece Tightening nut of reinforced core
10 Metal hoop 1 set For wall mounting and pole hugging
11 Buffer tube decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12
Aluminum-foil paper 1 piece Protect the bottom of FOSC


Necessary tools for installation

1. Supplementary materials (to be provided by operator)

Name of materials Usage
Scotch tape Labeling, temporarily fixing
Ethyl alcohol Cleaning
Gauze Cleaning


2. Special tools (to be provided by operator)

Name of tools Usage
Fiber cutter Cutting off fiber cable
Fiber stripper Strip off protective coat of fiber cable
Combo tools Assembling FOSC


3. Universal tools(to be provided by operator)

Name of tools Usage and specification
Band tape Measuring fiber cable
Pipe cutter Cutting fiber cable
Electrical cutter Take off protective coat of fiber cable
Combination pliers Cutting off reinforced core
Screwdriver Crossing/Paralleling screwdriver
Scissor
Waterproof cover Waterproof, dustproof
Metal wrench Tightening nut of reinforced core


4. Splicing and testing instruments (to be provided by operator)

Name of instruments Usage and specification
Fusion Splicing Machine Fiber splicing
OT DR Splicing testing
Provisional splicing tools Provisional testing
Fire sprayer Sealing heat shrinkable fixing sleeve

Notice: The above-mentioned tools and testing instruments should be provided by the operators themselves.


Installation flow chart

1. Open the closure
2. Determine length of fiber cable to be fixed and stripped inside FOSC
3. Strip off protective coats of fiber cable and fiber
4. Separate fiber cores and prepare work prior to fixing fiber cable
5. Fix reinforced core, and pyrocondense, fix and seal fiber cable
6. Splice fibers
7. Install heat shrinkable protective sleeve and house fibers
8. Check up comprehensively
9. Assemble FOSC housing and fix FOSC


The process of installing FOSC

1. Step One - Open the closure

① Cleaning the locale and determine where to install the FOSC and then place fiber cables required.

② Check whether the main components and accessories have been well prepared inside the package

③ Open the closure

  • Demount hoop fixing bolt and pull hoop locking system out, then proceed in demounting the hoop.

  • Pull the FOSC cover upwards out, installation could begin.

④ See Drawing 1

Important issues:

  • If the weather condition is not good enough, then a tent must be pitched for waterproof and dustproof.


Fiber optic splice closure01


2. Step Two -Determine length of fiber cable to be fixed and stripped inside FOSC

① If all fibers are for branch splicing, please refer to Drawing 2(A) for stripping length.

② If some fibers are for straight-through, while others are for branch splicing, please refer to Drawing 2(B) for stripping length.

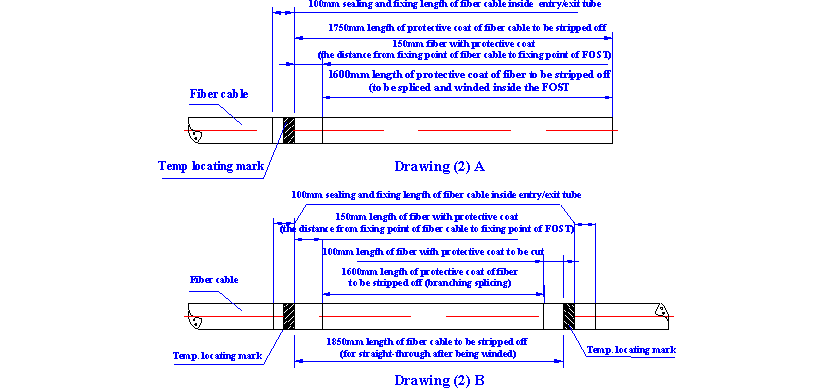

③ See Drawing 2

Important issues:

  • Reserve enough length of fiber cable to be spliced

  • Stripping length also could be decided by customers according to installation requirement


Fiber optic splice closure02


3. Step Three –Strip off protective coat of fiber cable and fiber

① Strip off protective coat of fiber cable from the temp. locating mark with the cutter and the stripper, please refer to Drawing 2 for stripping length. Stripping length also could be decided according to installation requirement

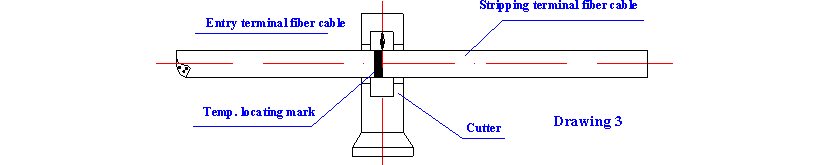

② See Drawing 3

Important issues:

  • If it is difficult to pull all the protective coat of fiber cable at one time, strip it off section by section to avoid fiber breakage.


Fiber optic splice closure03


4. Step Four – Separate fiber cores and prepare work prior to fixing fiber cable

① Wind 2 layers of insulation tape on protective coat of fiber core for protection. Meanwhile, get rid of the stuffing to separate fiber core and clean them. Form a ring with the diameter of 100mm or so and fix it on the fiber temporarily by adhesive tape.

② Depending on fiber cable stripped, the following two cases are available.

  • All fibers are to be branched after being spliced completely.

  • Some of fibers are for straight-through after being winded, while the others are for branch splicing.

③The FOSC is provided with 3 single entry/exit tubes which suit for single fiber cables with max. diameter ф16mm and 1 mass entry/exit tube which suits for 1 piece of fiber cable with max. diameter ф 25mm or 2 pieces of fiber cables with max. diameter ф 21mm or multi-pieces of fiber cables with short diameter.

④ Mass entry/exit tube is required if some fibers are for straight-through

⑤ The corresponding entry/exit tube cover could be slightly knocked out with screwdriver from inside to outside according to number and diameter of fiber cable required

⑥ Reserve reinforced core in 70mm length and cut off the unnecessary ones

⑦ See Drawing 4 and Drawing 5

Important Issues:

  • Entry/exit tubes are to be selected accurately to make it easy for splicing and sealing.


Fiber optic splice closure04


5. Fix reinforced core, and pyrocondense, fix and seal fiber cable

① Insert fiber cable into the corresponding heat shrinkable fixing tube, further insert the them into entry/exit tube at the bottom of FOSC.

② Demount fixing nut of reinforced core with a special wrench (plastic one), which is to be inserted into the fixing slot afterward and tighten it.  Then retighten it with a metal wrench (the metal wrench is to be provided by operator).

③ Hitch heat shrinkable fixing sleeve to the fiber cable till its root by hand.

④ Please refer to Drawing 5 for installing branching clip.

⑤ Heat heat shrinkable fixing sleeve with fire sprayer to make it hugging entry/exit tube and fiber cable to reach complete sealing.

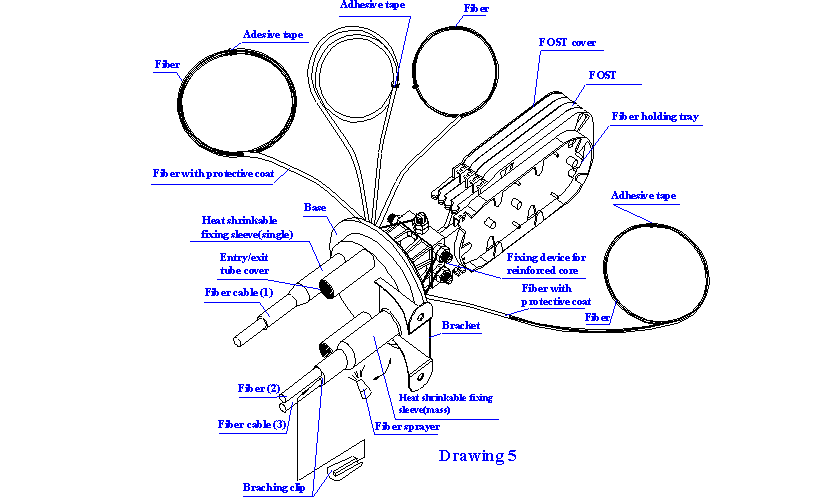

⑥ See Drawing 5

important issue:

  • Fixing nut of reinforced core should be tightened.

  • While heating, heat shrinkable fixing tube should shrink evenly, and there should be no bubbles, pores and other defects inside the tube.


Fiber optic splice closure05


6. Step Six - Splice fibers

① Follow user manual of fusion splicing machine to splice fiber.

Important issue:

  • pay attention to the twist and bend of fiber


7. Step Seven -Install heat shrinkable protective sleeve and house fibers

① When having completed splicing the fibers, the first fiber ring should be housed on the farthest side of FOST, the remaining fiber optic should be winded, forming a ring with diameter not less than 80mm. then put it into FOST (Fiber Optic Splice Tray) together with heat shrinkable protective sleeve.

( Firstly fix heat shrinkable protective sleeve into the slot, then enlarge the diameter of fiber ring properly.)

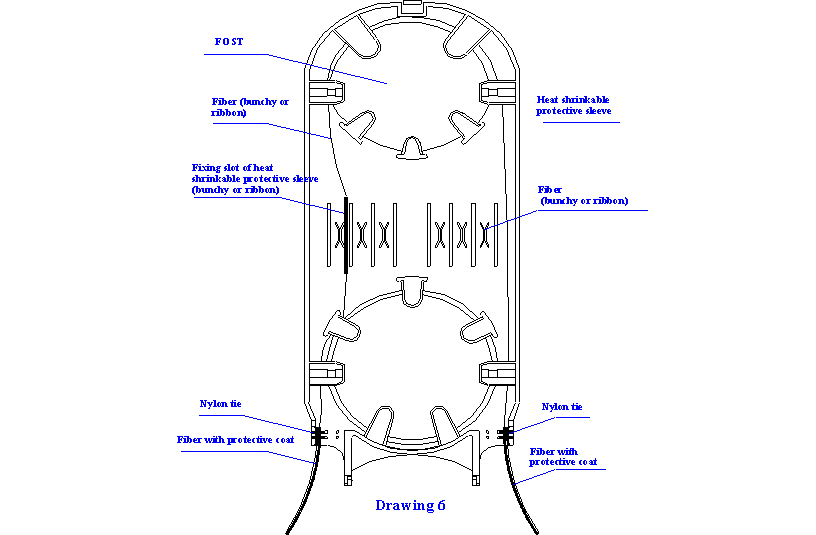

②  see Drawing 6

Important issue:

  • pay attention to the twist and bend of fiber


Fiber optic splice closure06


8. Step Eight - Check up comprehensively

To ensure the technical requirements, the following instructions must be followed:

① Fibers with protective coat are fixed with nylon tie at the entrance of FOST.

② Grommet should be pressed from inside to outside in order to properly install FOST.

③ Straight-through and reserved fibers with protective coat should be winded to the fiber holding tray.

④ Check whether the internal tighteners and fixing nut of reinforced core are well tightened.

⑤ Check whether seal fitting is installed neatly and smoothly.

⑥ Check whether heat shrinkable fixing sleeve is reliable and sealing completely.

⑦ See Drawing 7

Important issues:

  • If any problems occur, they should be solved right away.


Fiber optic splice closure07


9. Step Nine – Assemble FOSC housing and fix FOSC

① Put desiccant into FOSC.

② Put FOSC cover on base directly.

③ Install plastic hoop between FOSC cover and base, tighten hoop locking system, which is to be fixed by hoop fixing bolt then.

④ FOSC installation

  • Aerial application: fix metal hoop and transom to the pole. Please refer to Drawing 8

  • Wall mounting application: fix the bracket on the wall with bolt. (metal hoop is not required.)

  • Underground application: metal hoop is not required.

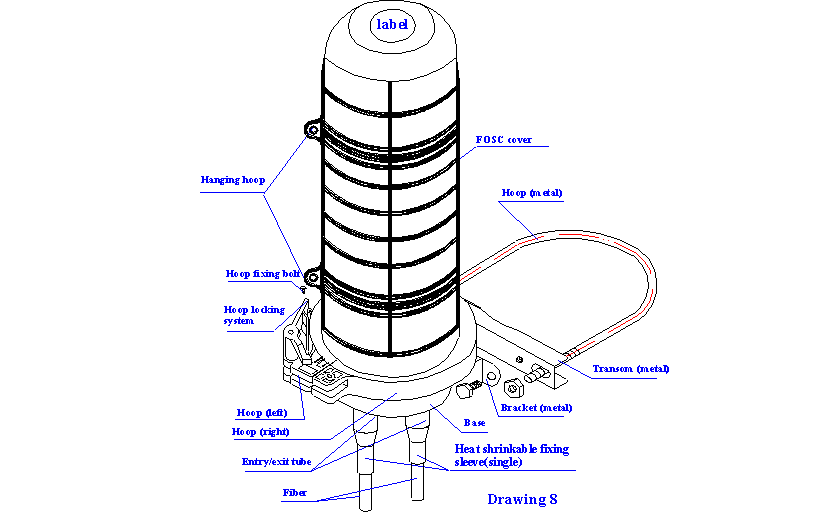

⑤ See drawing 8

Important issues:

  • Pay attention while installing plastic hoop.

  • The specification of bolt for fixing the bracket is M8.


Fiber optic splice closure08


Fiber Optic Splice Closures (FOSC) inspecting and testing items

Inspecting  item Technical Requirements Inspecting type
Routine test (Before leaving factory) Type test
Package

Each small package contains one fiber optic splice

 closure, together with its accessories, tools,

installation manual and packing list.

full At least 3 sets sampled each time
Appearance

Intact in shape, no burrs, bubbles, chaps, pores,

 warps, impurities and other defects, all background

colors should be even and continual.

Sign

There is a clear sign on the housing, such as name

 and model of the product, etc.

Fiber storage device

The fibers reserved are to be winded in fiber optic

 splice tray (FOST), the length of fibers housed in

FOST is >1.6m, the curved radius is >30mm. During

the installation and maintenance, there should be

no attenuation on fibers.

At least 3 sets sampled each time
Electrical jointing device

Inside FOSC: metallic components of fiber cables has

 the functions of electrical putting through, earthing

connection and disconnecting. It is possible to install

earthing deriving device outside the housing

Sealing performance

After sealing according to the stipulated operation

 procedures, the injected air pressure is 100KPa±5Kpa,

when immersed in clean water of normal temperature

for 15 minutes, there should be no air bubbles, then

observed for 24 hours, there should be no change of

air pressure.

Re-sealing performance

After reopening and resealing according to the stipulated

 operation procedures, the injected air pressure is

100KPa±5Kpa, when immersed in clean water of normal

temperature for 15 minutes, there should be no air bubbles,

then observed for 24 hours, there should be no change

of air pressure.

Pull

Bearing pull is ≧ 800N at axle orientation, there should be

 no breakage on the housing.

Punching

Bearing pressure of 2000N/10cm for 1 minutes, there

 should be no breakage on the housing

Impact

Bearing impact energy of 16N•m, 3 times of impacts there

 should be not breakage on the housing

Bending

The spot between the FOSC and seal fitting can bear

 bending tension of 150N at bending angle of ±450 for

10 circles, there should be no breakage on the housing



Torsion

Bearing torsion 50N•m, 10 circle at torsion angle±900,

There should be no breakage on the housing.



Temperature circle

Injected air pressure of 60KPa±5 KPa, the temperature

 circle ranging from -40℃~+65℃, 10 times of the circular

tests (one circular consists of high temperature for 2 hours

+ indoor temperature for 2 hours + low temperature for

2 hours + indoor temperature for 2 hours ) when the pressure

declines, the amplitude is ≦5Kpa, immerse the swatch in clean

water of normal temperature for 15 minutes, there should be

no air bubbles.



Voltage resistance strength

After sealing the FOSC according to the stipulated operation

 procedures, immerse it in clean water of normal temperature

in 1.5m depth for 24 hours, there should be no breakdown

or arc over between the metallic components of the FOSC,

between metallic components and the ground at DC 15KV for 1 minutes.



Isolating resistance

After sealing the FOSC according to stipulated operation

 procedure, immerse it in clean water in 1.5m depth for 24h,

the isolating resistance between the metallic components of the FOSC, between the metallic components and the ground should be ≧ 2×104MΩ.




GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Leave Message

A hi-tech enterprise having a self-owned brand and specializing in the R&D, manufacture and sales of fiber optical communications equipment.

QUICK lINKS

HOT PRODUCTS

CONTACT US

   sales@wboptictech.com

   +86-21-52188985
  Room 202, 2 Floor, No.399 Jiaqian road, Jiading District, Shanghai
Copyright  Shanghai Wanbao Optical Technologies Co., Ltd.  | All Rights Reserved
