Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region.
surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SWOT FS-1698H is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region.
surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SWOT FS-1698H is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
5 inches high resolution colorful LCD display, image can be turned according to position
Average splice time: 9 seconds
Average tube-heat time: 25 seconds
Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
Cutting-edge technology for image processing
New developed technology providing strong wind and dust resistance
Splicing mode: Auto & Manual & Full-Auto
USB Port
Storing 6,000 groups of latest splice results
New technology of fiber core alignment, enhanced accuracy
New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC
connector)
5 inches high resolution colorful LCD display, image can be turned according to position
Average splice time: 9 seconds
Average tube-heat time: 25 seconds
Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
Cutting-edge technology for image processing
New developed technology providing strong wind and dust resistance
Splicing mode: Auto & Manual & Full-Auto
USB Port
Storing 6,000 groups of latest splice results
New technology of fiber core alignment, enhanced accuracy
New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC
connector)

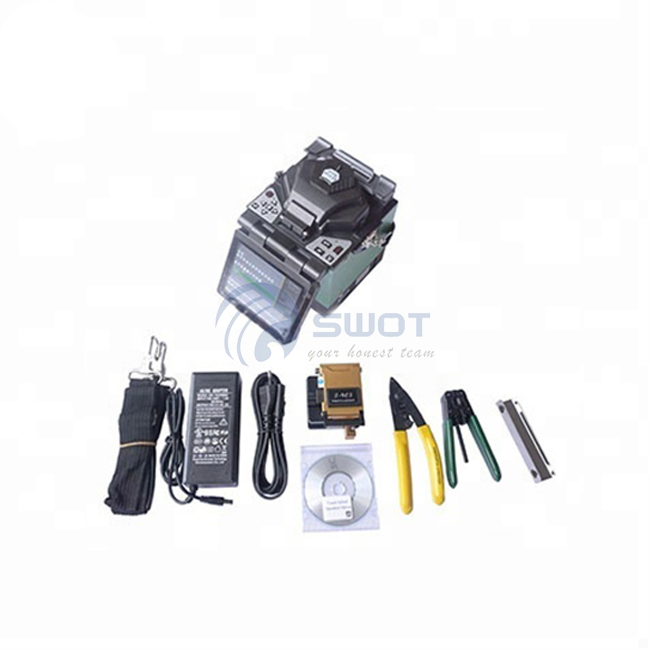

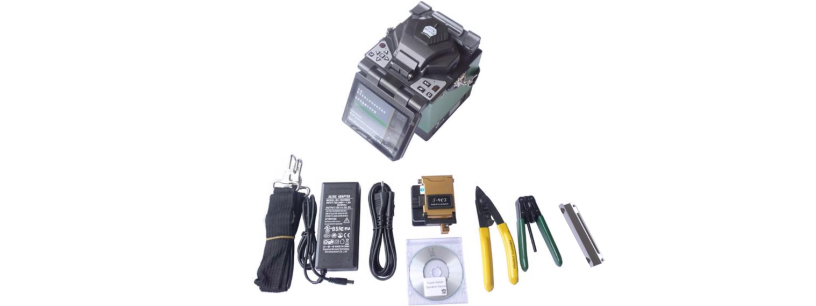

Item | Quantity | Item | Quantity |
1, Machine FS-1698H | 1 | 7, Spare Electrodes | 1 |
2, Fiber Cleaver | 1 | 8, Cooling Tray | 1 |
3, Fiber Stripper | 1 | 9, Instruction CD | 1 |
4, AC Adaptor | 1 | 10, Quick Reference Guide | 1 |
5, Battery | 1 | 11, Rubber-insulated wire strippers | 1 |
6, Battery Charge | 1 | 12,Carrying case with Carrying strap | 1 |
Item | Quantity | Item | Quantity |
1, Machine FS-1698H | 1 | 7, Spare Electrodes | 1 |
2, Fiber Cleaver | 1 | 8, Cooling Tray | 1 |
3, Fiber Stripper | 1 | 9, Instruction CD | 1 |
4, AC Adaptor | 1 | 10, Quick Reference Guide | 1 |
5, Battery | 1 | 11, Rubber-insulated wire strippers | 1 |
6, Battery Charge | 1 | 12,Carrying case with Carrying strap | 1 |
