FTB-102B Wall Mount Fiber Termination Box - Buy Wall Mount Fiber Termination Box Product on SHANGHAI WANBAO OPTICAL TECHNOLOGIES CO.,LTD.

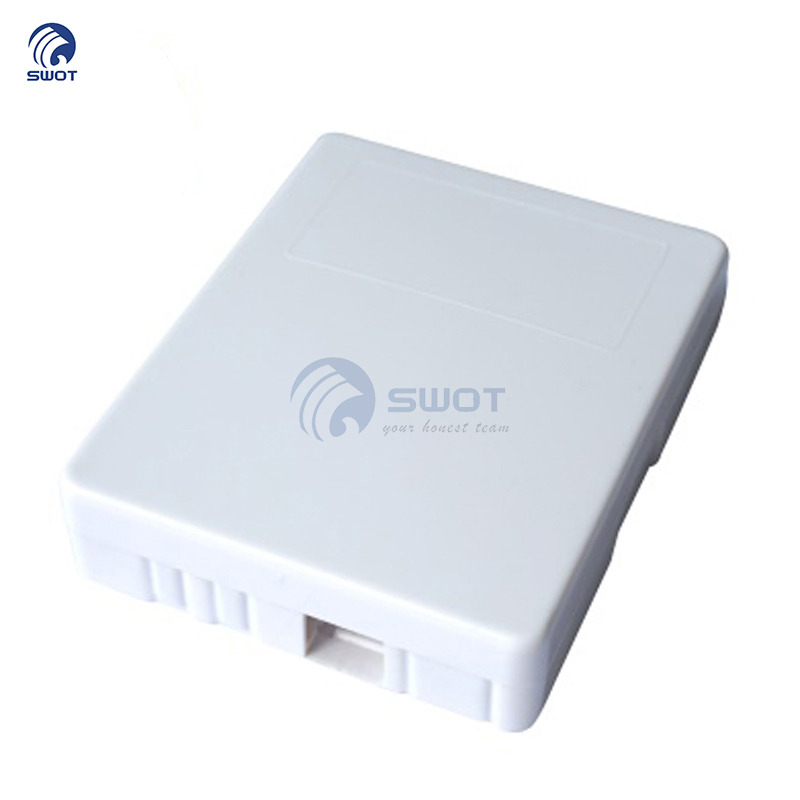

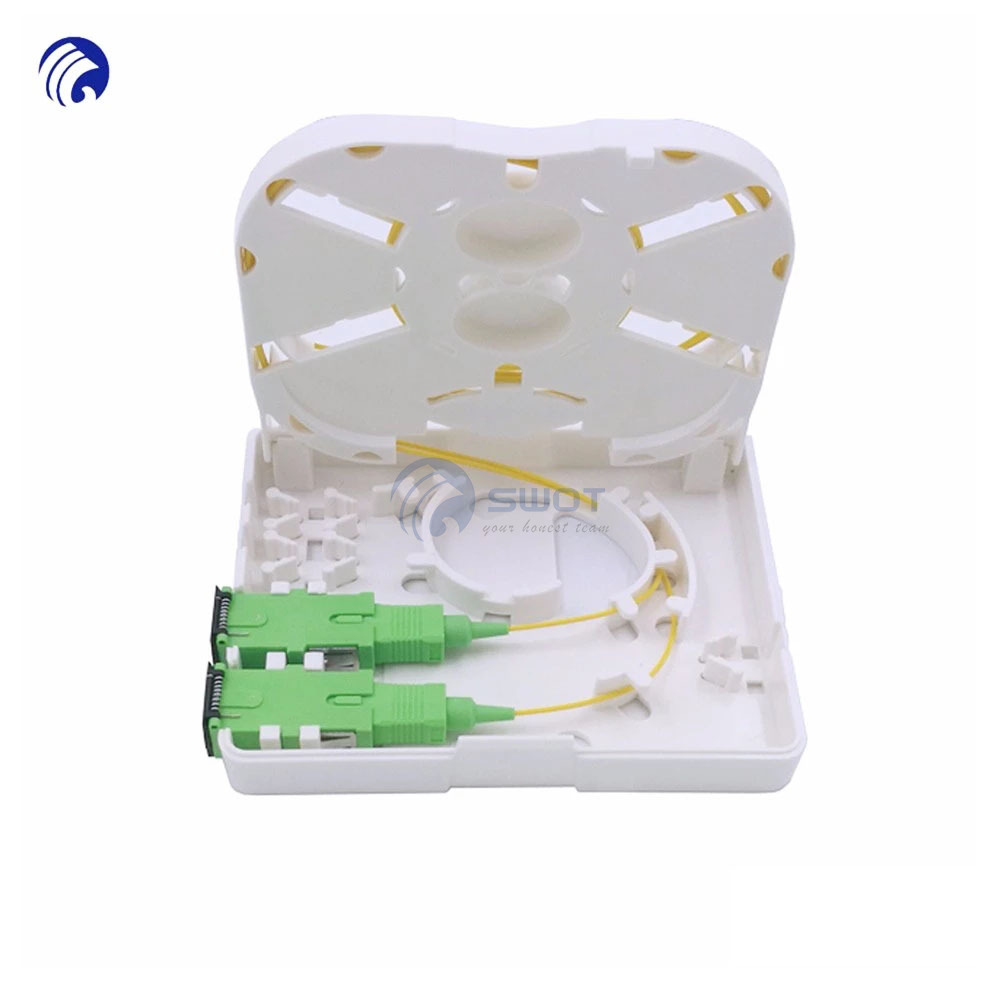

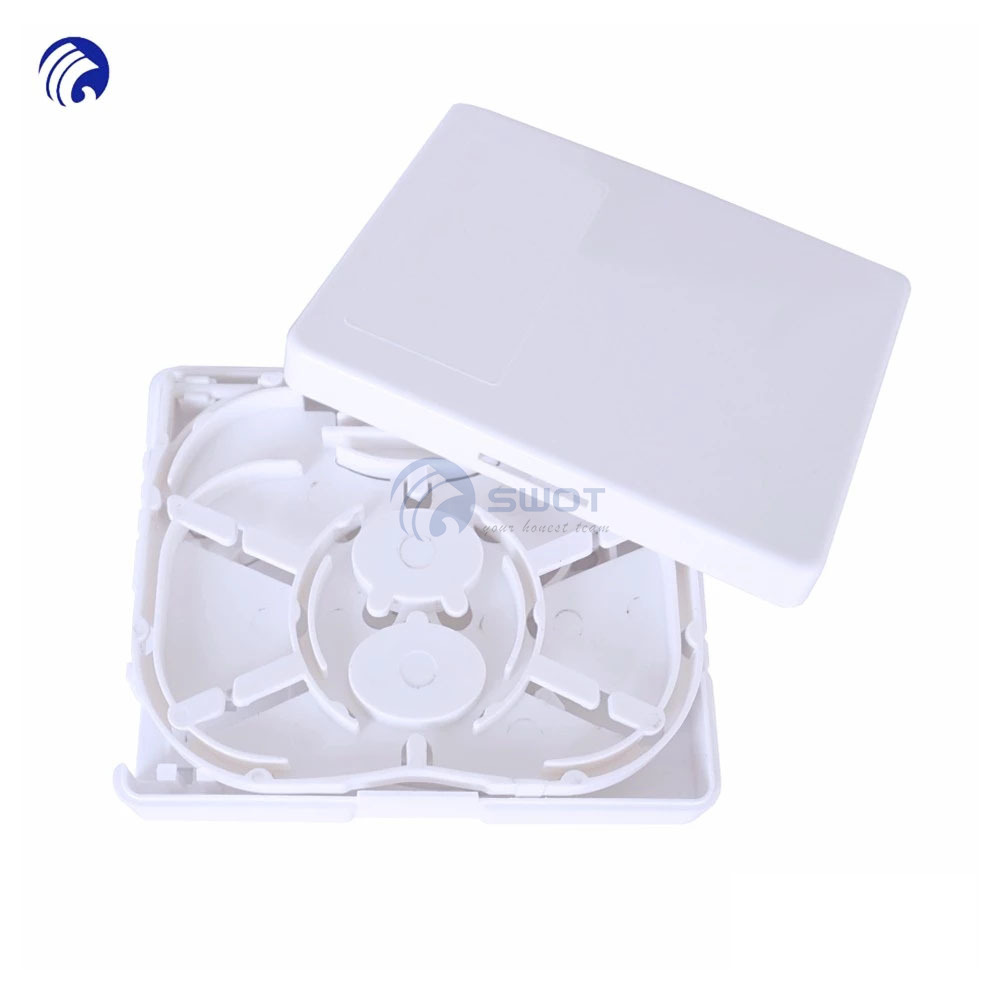

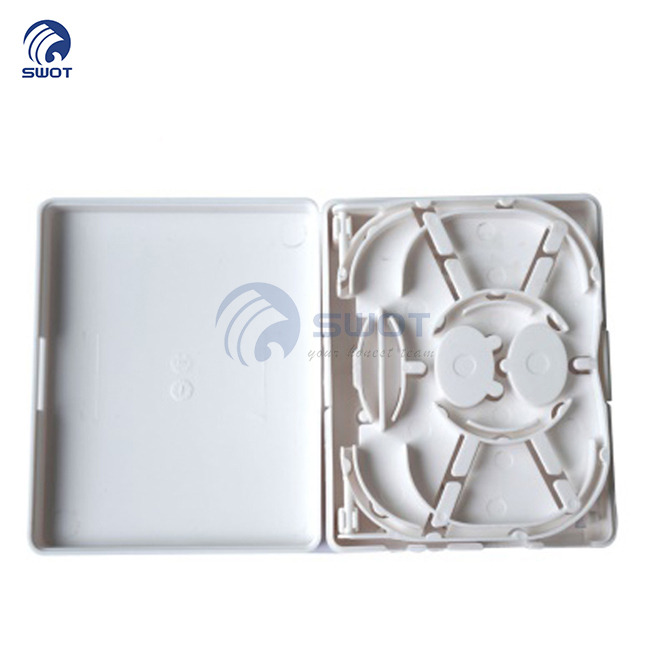

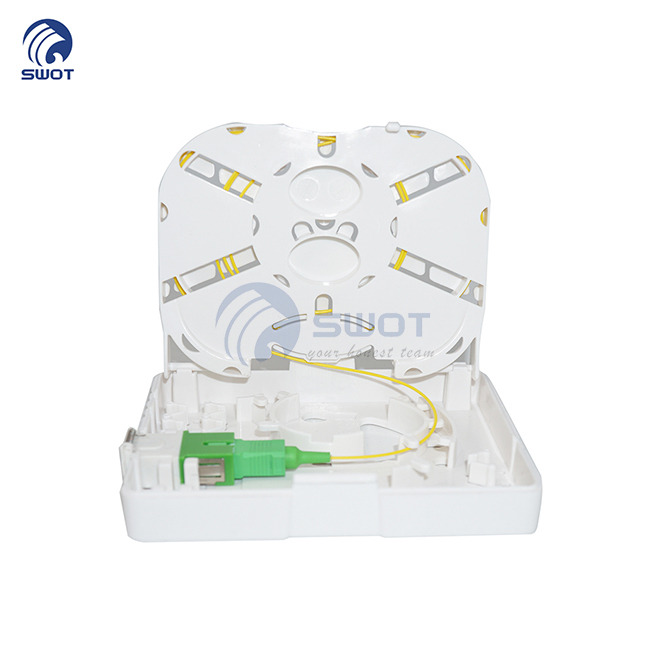

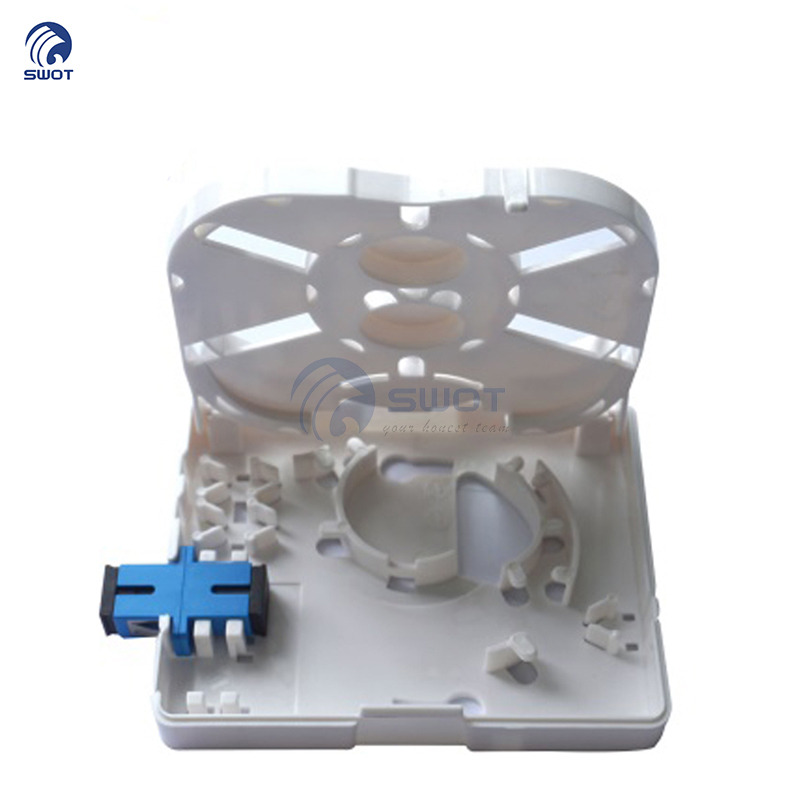

FTB-102B Fiber Optic Rosette

The FTB-102B is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.

Support termination, splicing and storage for fiber optic cable systems
Suitable for 1pc or 2pcs adapters SC configuration
The minimum bending radius Compatible with G.657B3
The complete outlet is fully compatible with 3.0 mm LSZH G.657.B3 indoor/outdoor drop cable
Compact structure, dust protection and perfect fiber management
If the outlet contains any metallic parts, they must be corrosion resistant.
Engineered fiber routing protect bend radius through the unit to ensure signal integrity
It has space to install one additional mechanical splice connector, in order to to mechanically splice the drop fiber to the pigtail
ICE logo embossed or debossed logo on the cover
Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Parameter	Value	Remark
Model	FTB-102B
Outside Dimension (mm)	8010025
Material	high-impact thermoplastic ABS UL94V0
Color	White
Storage of fibers	G.657B3
Splice capacity	2 fiber
Splice Method	Fusion Splice or mechanical splicing
Adapter type and count	1 SC or 2 SC (max)
Input cable	3mm or figure 8 (2*3mm)	From side or bottom
