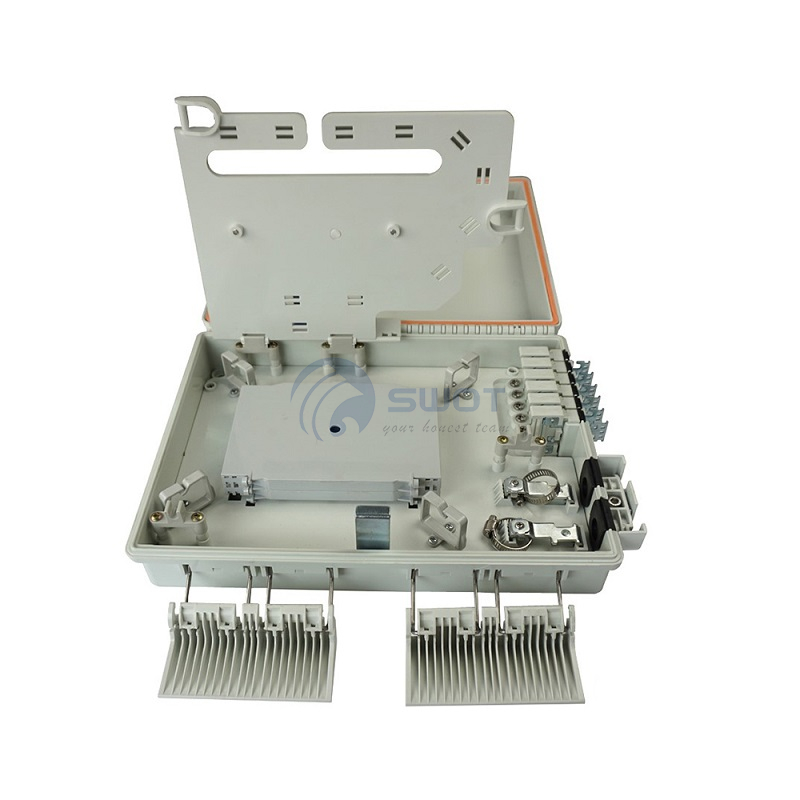

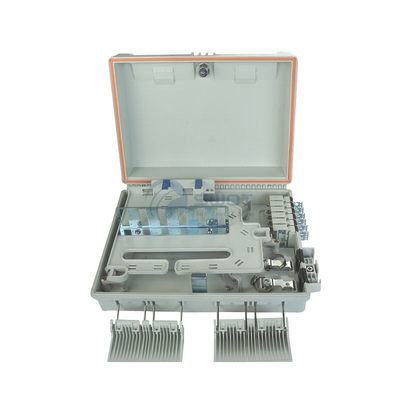

FTT-FDB24D 24 Port FTTH Terminal Box


Capacity: 24 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount


  1. Mechanical seal: Good sealing, Performance, Easy Installation, Repeat Installation

  2. FTTH project &FTTH Deployment

  3. For indoor and outdoor wall-mounting, Pole-mounting application

  4. Suitable for 1x8/1x16 mimi type PLC splitter

  5. Fit for Un-cutting cable solution

  6. Fit optical fiber cable diameter below 16mm splicing

  7. 2 inlet ports, 24 outlet ports, max for the 48 fiber splicing



Model Name

FTT-FDB24D

Dimension(LxWxH)

345mmx257mmx110mm

Cable Entries

2 pcs. Forφ16mm

24 pcs. for 2x3mm drop cable

Splicing Tray

12/24 Fiber per tray

Max. capacity

24 cores

Material

PC

PLC splitter

3 X1*8, 1*16 mini type PLC splittter

Max splicing

48Fiber

Protection Class

IP65

Cable Entry

Support Un-cutting


FTT-FDB24D
Packing 10pcs/carton box

   carton box
