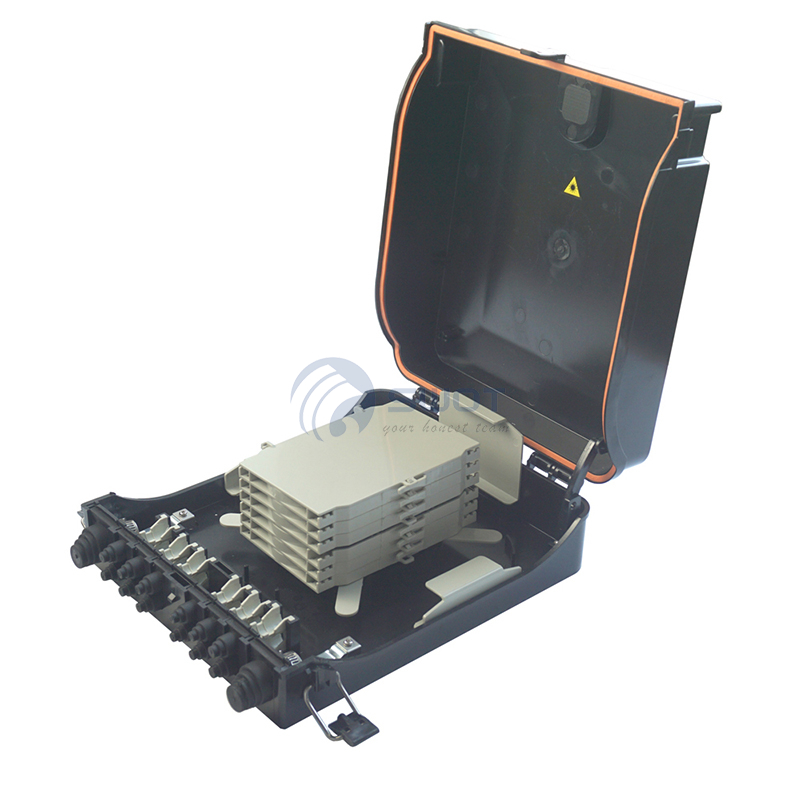

SWOT-H0212-144 FTTH Terminal Box 144 Core Fiber Optic Splice Closure


Capacity: 144FO
Connector type: /
Applications: FTTx wall mount and pole mount


  1. Applicable for the FTTx project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.

  2. Rated to IP54, suitable for indoor or outdoor application.



Dimension

245×291.5×94.5mm

Entry ports and cable dia. (max.)

2×Φ22mm

Output ports and cable dia. (max.)

4xΦ11mm

Output ports and cable dia. (max.)

8×Φ10mm

Splice capacity

144FO

Max. number of splice tray

6

Splice capacity of each tray

12/24FO

Mounting type

Wall-mounting or pole-mounting



Lock type

2 Side locks (Hasp lock)

1 Standard key lock (Optional)


Performance

Material

Engineering plastic

Temperature range

-40℃ to +70℃

Life expectancy

20 years

Flame resistant

V0

Seal material of the box

EPDM

Seal material of the ports

Rubber

Protection rating

IP54
