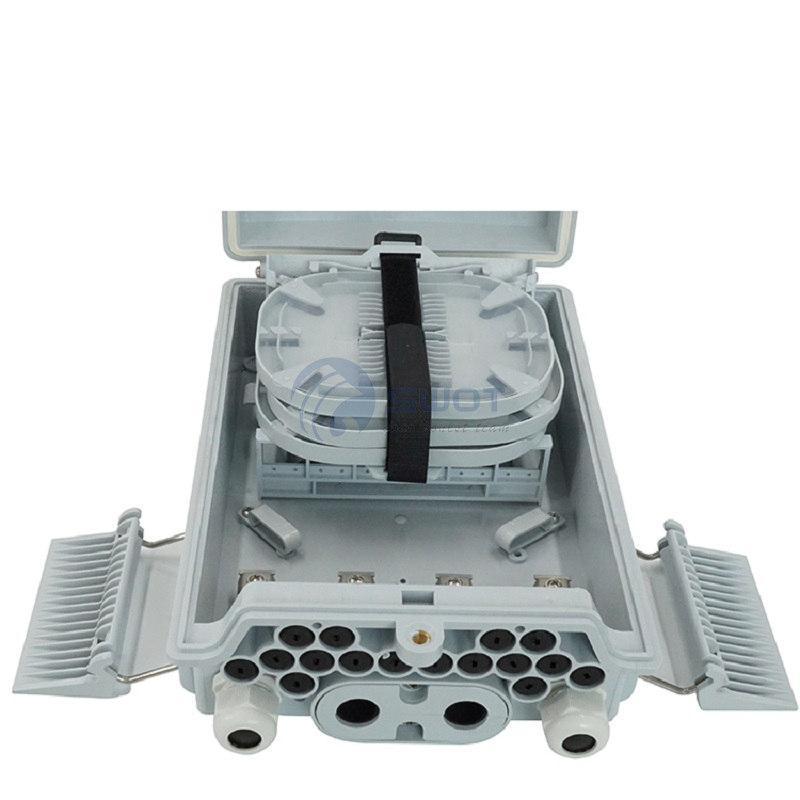

FTT-FDB12B 12 Port FTTH Terminal Box


Capacity: 12 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount
Availability:
  1. PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

  2. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

  3. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

  4. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Product No.

FTT-FDB12-B

Dimension(LxWxH)

274*175*82 mm

Cable entries

Inlet port: 4 ports

Outlet port: 16 ports

Splicing Tray

12/24 fiber per tray

Max. capacity

72 cores

Material

ABS+PC

PLC splitter

1*4,1*8,1*12 Mini Steel Tube/bare type PLC splitter

No. of Adapter

Max. 12pcs SC SX / 12pcs LC DX Adapter

IP rating

IP65

Cable Entry

Support un-cutting

ColorBlack/White
