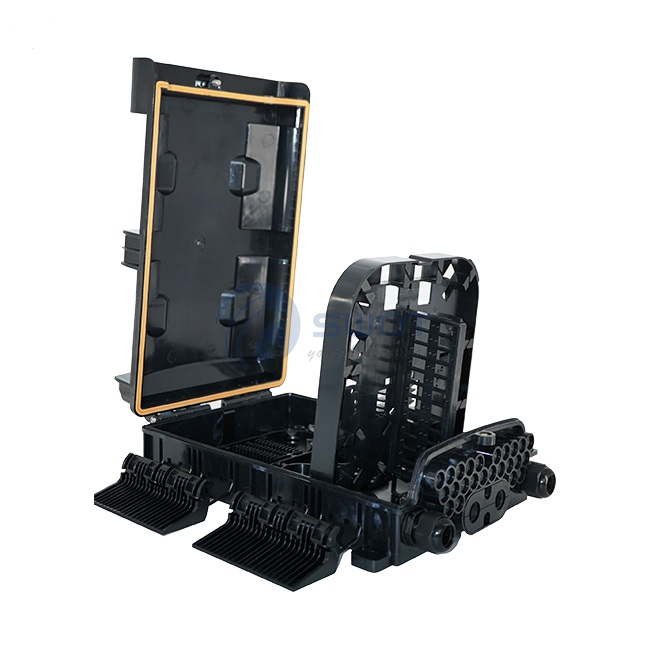

FTT-H724 16 Port FTTH Terminal Box


Capacity: 24 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount
Availability:
Inquire Add to Basket


  1. Mechanical seal: Good sealing, Performance, Easy Installation, Repeat Installation

  2. FTTH project &FTTH Deployment

  3. For indoor and outdoor wall-mounting, Pole-mounting application

  4. Suitable for 1x8/1x16 mimi type PLC splitter

  5. Fit for Un-cutting cable solution

  6. Fit optical fiber cable diameter below 16mm splicing

  7. 4 inlet ports, 24 outlet ports, max for the 48 fiber splicing


Product Name

FTT-H724

Dimension

340*240*96mm

Capacity of FOSC

24 Cores

Max radio

1:24

Cable entry ports

Input/output 24

Diameter of Cable

φ16

Assembling method

Pole,wall-mounting

Protection level

IP65





Outer carton size

77*36*48mm

Inner carton size

350*245*112mm

Number of packing

12pcs/ctn

Weight

1.6kg/piece
