FTT-H316 16 Port FTTH Terminal Box


Capacity: 16 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount
Availability:
Inquire Add to Basket


  1. FTTH products ,passive optical points wiring special terminal box;

  2. The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use;

  3. Can meet the following Ф12 cable into, and can meet the figure 8 or Ф3 cable protective in splice connection;

  4. Can be installed 1:16 SC or 1:32 LC Mini-splitter;

  5. LC biggest for 32core，SC biggest for 32 core

  6. Mechanical seal: good sealing, can repeat use. Protective level:IP65.

  7. Laying: outdoor wall-mounting and pole-mounting.


Dimension
325*240*113mm
Weight
1.84kg/pcs
Cable entry ports
IN 3/OUT 16
Diameter
Φ16
Max ratio
1:16
Capacity

3 port inlet

16port outlet
Capacity of FOSC
Capacity of FOSC
Capacity of FOSC
IP65
No. of packing
12pcs/carton
Outer carton size
750*340*490mm


Installation fixing

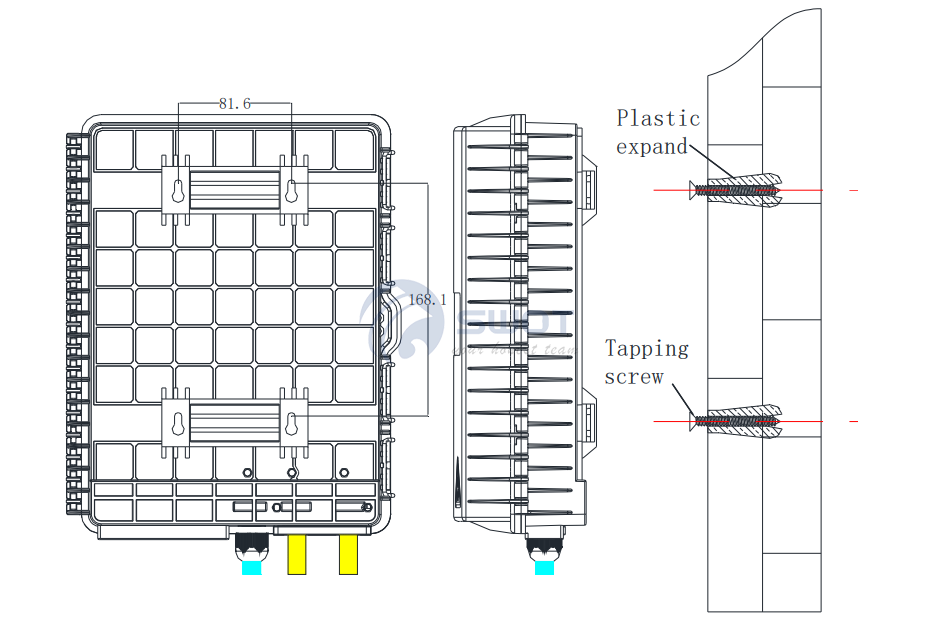

 A.Wall-mounting installatin(standard configuration) According to your drawings on the wall a crossed punch, and then will plastic expand into flush with metope; By tapping screws twist into plastic expand, to tapping screws tail and metope 4 mm distance; Will do the base of lock hole big head the most standard of screw into, and down lock

WALL mounting

B.Pole-mounting(for customers chose) Open the stainless steel hoop and wear into the terminal box base square hole, and then encircle the pole, and finally screw up.

pole mounting
