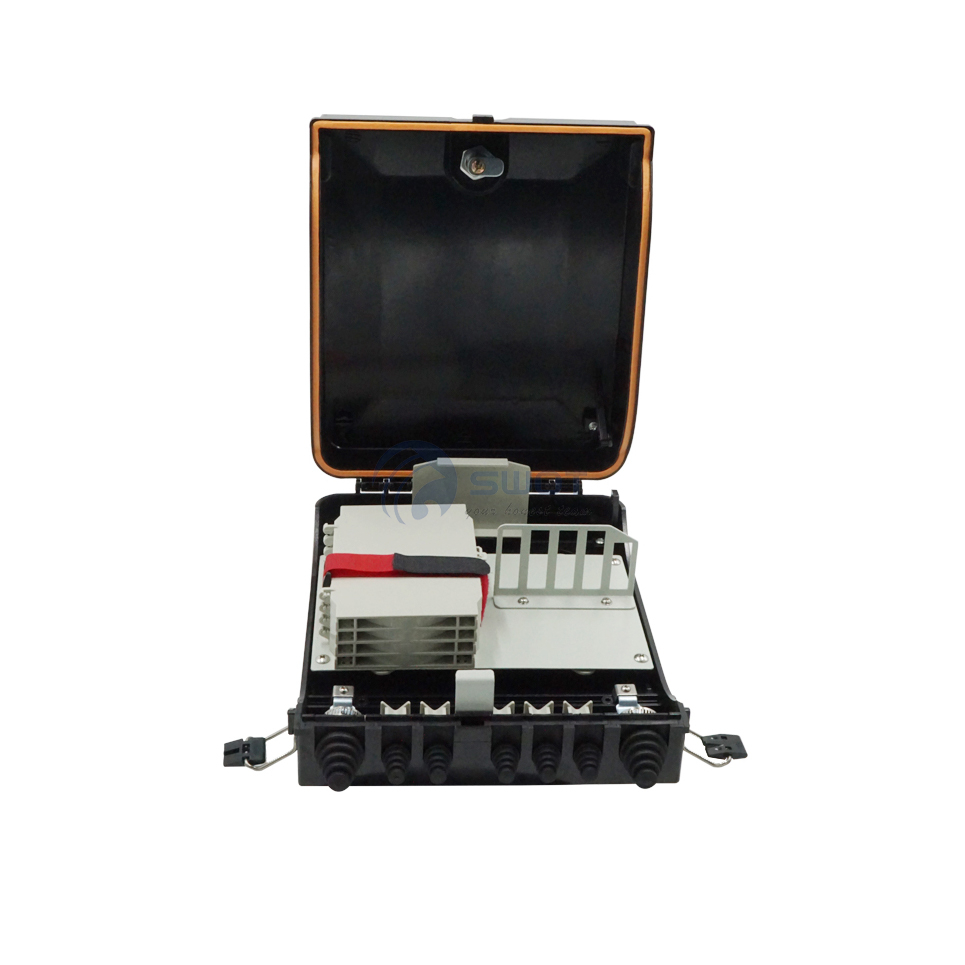

SWOT-H 0212-24 24 Port FTTH Optic Terminal Box


Capacity: 6 port
Connector type: SC simplex, LC duplex
Applications: FTTx wall mount and pole mount
  1. The box casing is made of industrial plastic PP+ABS material. Outdoor application and good UV resistant.

  2. Fiber bend radius control more than 35mm.

  3. 180 degree access with 2pcs of buckled lock structure.


Part No.

SWOT-H 0212-24

Dimension

245×296×97 mm

Entry ports and cable dia. Cmax.3

2x22mm

Output ports   and cable dia. (max.)

4×11mm

Output ports   and cable dia. (max.)

8×10mm

Max. number   of splice trays

6 pcs

Splice   capacity of each tray

12/24FO

Max. numbers   of adaptors

24 SC

Cover open   fixed position

90 & 180   degree

Lock   type

Key   lock with dust proof cover (Optional)

Installation   way

Wall-mounted   or pole-mounted



Performance


Part No.

SWOT-H 0212-24

Housing   material

ABS+PC

Temperature range

-40 oC   to +70 oC.

Flame   resistant

V0

Seal   material of the box

EPDM

Seal   material of the ports

Rubber

Protection   rating

IP54



Mounting kit



  • Wall-mounted kit (standard configuration).

  • Pole-mounted kit (Optional)
