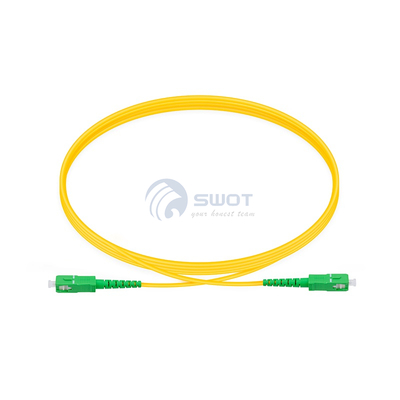

Patch Cord&Pigtails SC/APC-SC/APC OS2 2.0mm/3.0mm


Fiber Type: Single mode,Multimode,OM1,OM2,OM3,OM4
Fiber Count: 1F/2F
Outer Sheath Material:LSZH,OFNR,OFNP
Applications
1.Telecom Net
2.Optical Fiber Test Equipment
3.Optical Fiber Sensor
4.FTTH/LAN/PON/CATV.
Availability:


  1. Aramid yarn strengthened provide good tensile strength

  2. Outer jacket complies with UL, RoHS

  3. Light, flexible and easy to bend

  4. Low insertion loss and high return loss, stable transmission

  5. Standard: Telcordia GR-326-CORE, TIA/EIA and IEC





Physical Characteristics
Connector Types End A LC/SC/ST/FC/E2000/MU/MTRJ
Connector Types End B LC/SC/ST/FC/E2000/MU/MTRJ
Polish Type SMF: UPC-UPC; UPC-APC;APC-APC; MMF: UPC-UPC
Connector Ferrule Zirconia Ceramic
Fiber Type Single mode
Fiber Count Duplex /Simplex
Cable Jacket LSZH
Jacket Color Yellow
Fiber Grade SMF: G.657B3
Minimum Bend Radius SMF: 10mm/30mm; MMF: 7.5mm/15mm
Operating Temperature -40~85℃
Storage Temperature -40~85℃
Cable Diameter Simplex:2.0mm & 2.8mm & 3.0mm
Duplex:2.0*4.1mm & 2.8*5.7mm&3.0mm*6.1mm
Optical Characteristics
 Insertion Loss LC/SC/ST/FC/E2000/MU/MTRJ≤0.12 dB average; ≤ 0.25 dB max. for >97% of samples
Return Loss

SMF: UPC≥50, APC≥60 ;



Connectors Guidance
Name:Lucent Connector

Applications:High-density connections, SFP and  SFP+ transceivers, XFP  transceivers

Patch Cord&pigtails01

Name:Square Connector

Applications:Datacom and telecom; GPON;  EPON; GBIC

Patch Cord&pigtails02

Name:Ferrule Connector

Applications:Datacom, telecom, measurement  equipment, single  mode lasers

Patch Cord&pigtails03

Name:Straight Tip

Applications:Datacom /Security /monitoring

Patch Cord&pigtails04

Name:E2000

Applications:Telecom, DWDM systems

Patch Cord&pigtails05

Name:Miniature Unit

Applications:LANS and telecommunication  networks

Patch Cord&pigtails06


Patch Cord&pigtails08



Packing
Packing material ZIP Bag
Carton Dimension (HxWxD) 460x240x550mm



Technical Spec of Fiber Patch Cord.pdf
