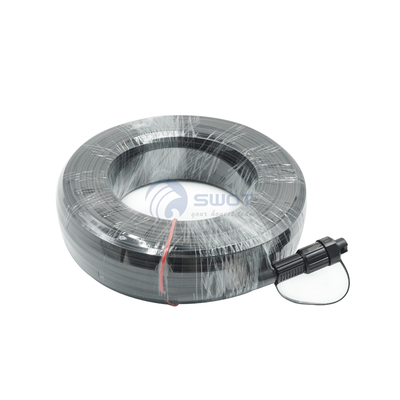

IP68 FTTA Patch Cord Pigtail Mini SC Waterproof connector
Home » Products » Fiber Optic Connection » IP68 FTTA Optical Cable Assembly » IP68 FTTA Patch Cord Pigtail Mini SC Waterproof connector

Contact Us

Share to:

IP68 FTTA Patch Cord Pigtail Mini SC Waterproof connector


Fiber Type: G657A1/G657A2
Fiber Count: 1F
Outer Sheath Material:LSZH,TPU
Applications:
1.Fiber-to-the-Antenna (FTTA)
2.Automation and industrial cabling
3.Surveillance systems
4.Naval and ship building
5.Broadcast


  1. Cost effective solution for in house termination

  2. Low insertion loss and added loss

  3. Height of attenuation.

  4. IP68 water, dust proof and corrosion resistant

  5. The material in the jumpel cable are all-weather and UV-resistant.

  6. Mechanical performance: IEC 61754-4 standard.

  7. RoHS and REACH materials compliant.



Technical Parameters(Connector)

Standards GR-3120, GR-3152, IEC61753-1, IEC 61754-4
Insertion loss ≤0.5dB
Return loss ≥50dB(UPC),≥60dB(APC)
Repeatability ≤ 0.1
Interchangeability ≤ 0.2
Durability ≥ 1000 times
Dust Cap Max. Pulling Force 100N
Water Resistance IP68
Operating temperature -40℃ to + 85℃
Storage Temperature -40 to 85°C

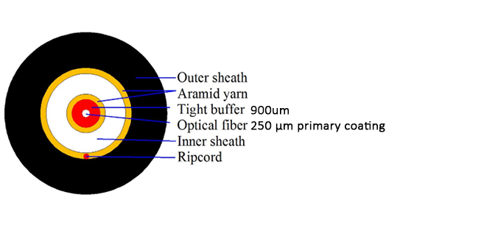

Four fiber optic cable types for you choose

1.FTTH outdoor drop cable (2.0x5.2mm)

IP68 FTTA Patch Cord Pigtail 01 NO. Name Remark
1 LSZH
2 FRP/Steel Wire
3 K-FRP
4 Nylon Fiber SM G657A1/A2


2.Small size Fig-8 drop cable (3.0x5.2mm)

IP68 FTTA Patch Cord Pigtail 02 NO. Name Remark
1 LSZH
2 FRP/Steel Wire
3 Kevlar

4

Tight Buffer
5 Fiber SM G657A1


3.Flat fiber optic cable, 4.0X7.0mm

IP68 FTTA Patch Cord Pigtail 03 NO. Name Remark
1 LSZH
2 FRP/Steel Wire
3 Ripcord
4 Loose Tube
5 Kevlar
6 Tight Buffer
7 Fiber SM G657A1/A2
