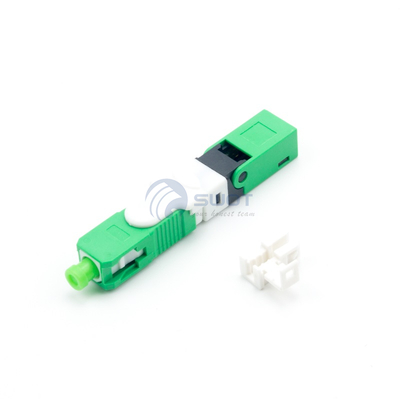

Fiber Optic Fast Connector

Fiber Optic Fast Connector

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Optical Cable	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Plug Type	SC/APC；SC/UPC
Insertion Loss (dB)	﹤0.5dB(0.2dB typical)
Return Loss (dB)	SC/APC≥55dB；SC/UPC≥45dB
Tensile Strength	﹥50N
Thermal Shock	ΔIL﹤0.3dB ； ΔRL﹤5dB
Reusable Time	≥10 times
Operating &Storage Temperature	-40~+85

Optical Cable	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Plug Type	SC/APC；SC/UPC
Insertion Loss (dB)	﹤0.5dB(0.2dB typical)
Return Loss (dB)	SC/APC≥55dB；SC/UPC≥45dB
Tensile Strength	﹥50N
Thermal Shock	ΔIL﹤0.3dB ； ΔRL﹤5dB
Reusable Time	≥10 times
Operating &Storage Temperature	-40~+85
