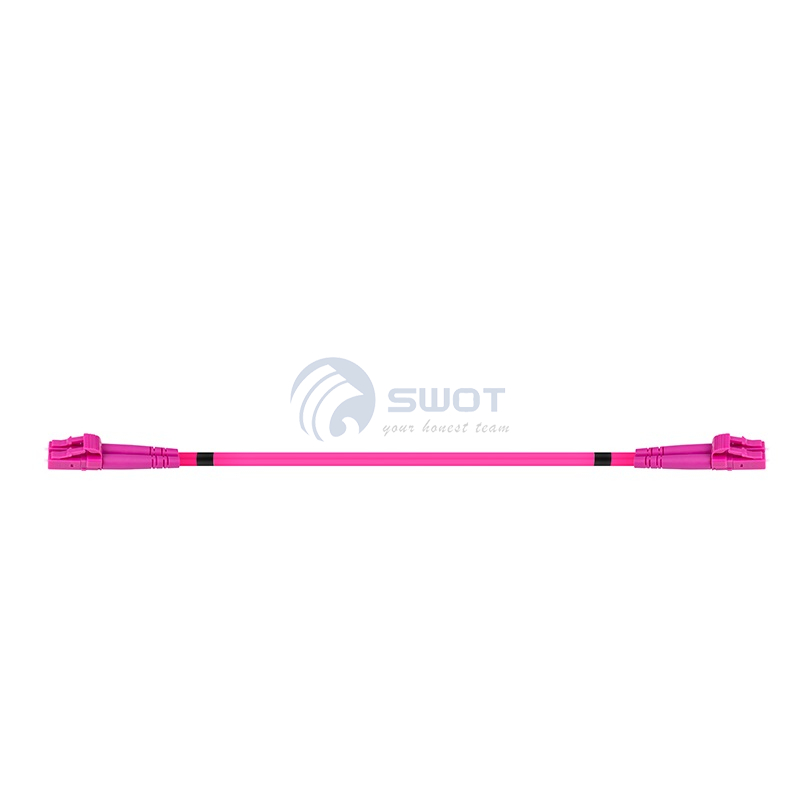

Patch Cord&Pigtails LC/UPC-LC/UPC OM4 2.0mm/3.0mm

Patch Cord&Pigtails LC/UPC-LC/UPC OM4 2.0mm/3.0mm

Home » Products » Fiber Optic Connection » Patch Cords& Pigtails » Patch Cord&Pigtails LC/UPC-LC/UPC OM4 2.0mm/3.0mm

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Physical Characteristics
Connector Types End A	LC/SC/ST/FC/E2000/MU/MTRJ
Connector Types End B	LC/SC/ST/FC/E2000/MU/MTRJ
Polish Type	SMF: UPC-UPC; UPC-APC;APC-APC; MMF: UPC-UPC
Connector Ferrule	Zirconia Ceramic
Fiber Type	OS2/OM5/OM4/OM3/OM2/OM1
Fiber Count	Duplex /Simplex
Cable Jacket	PVC (Riser/OFNR)/LSZH/Plenum (OFNP)
Jacket Color	OS2: Yellow ;OM4: violet ;OM3: Aqua;OM1/OM2:orange
Fiber Grade	SMF: G.657.A1/G.652.D; OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651
Minimum Bend Radius	SMF: 10mm/30mm; MMF: 7.5mm/15mm
Operating Temperature	-40~85℃
Storage Temperature	-40~85℃
Cable Diameter	Simplex：0.9mm & 2.0mm & 3.0mm
Cable Diameter	Duplex：2.04.1mm & 3.06.1mm
Optical Characteristics
Insertion Loss	≤0.3dB
Return Loss	SMF: UPC≥50, APC≥60 ; MMF: UPC≥30
Fiber Attenuation	SMF:1310 nm≤0.36 dB/km ; 1550 nm≤0.22 dB/km MMF:850 nm≤3.0 dB/km ; 1300 nm≤1.0 dB/km

Connectors Guidance
Name：Lucent Connector Applications:High-density connections, SFP and SFP+ transceivers, XFP transceivers
Name：Square Connector Applications：Datacom and telecom; GPON; EPON; GBIC
Name：Ferrule Connector Applications：Datacom, telecom, measurement equipment, single mode lasers
Name：Straight Tip Applications：Datacom /Security /monitoring
Name：E2000 Applications：Telecom, DWDM systems
Name：Miniature Unit Applications：LANS and telecommunication networks
