Patch Cord&Pigtails Drop Cable In door-SCAPC-SCAPC


Fiber Type: G657A1/G657A2
Fiber Count: 1F/2F / 4F
Outer Sheath Material:LSZH,OFNR,OFNP
Applications:
1.Telecom Net
2.Optical Fiber Test Equipment
3.Optical Fiber Sensor
4.FTTH/LAN/PON/CATV.
Availability:
Inquire Add to Basket


  1. FRP/Steel strengthened provide good tensile strength

  2. Outer jacket complies with UL, RoHS

  3. Light, flexible and easy to bend

  4. Low insertion loss and high return loss, stable transmission

  5. Standard: Telcordia GR-326-CORE, TIA/EIA and IEC




Physical Characteristics

Connector Types

SC / FC

Connector Ferrule

Zirconia Ceramic

Fiber Type

G657A1/G657A2

Fiber Count

1F / 2F

Cable Jacket

LSZH

Jacket Color

Black / Gray /White

Operating / Storage Temperature

-40~85℃

Cable weight (Kg/km )

15

Min Bending Radius(mm)

Long term :10D ; Short term: 20D



Optical Characteristics

Connector Insertion Loss

≤0.3dB

Connector Return Loss

SMF: UPC≥50, APC≥60

Fiber Attenuation

1310 nm≤0.36 dB/km ; 1550 nm≤0.22 dB/km

Interchangeability

<0.3 dB

Vibration

<0.2 dB

Tensile Strength

<0.1 dB

High Temperature

<0.3 dB

Low Temperature

<0.3 dB

Temperature Cycle

<0.3 dB

Humidity

<0.3 dB




Packing

Packing material

ZIP Bag

≤50m

40pcs/Carton

50m-110m

12pcs/Carton

Carton Dimension (HxWxD)

360x360x440mm

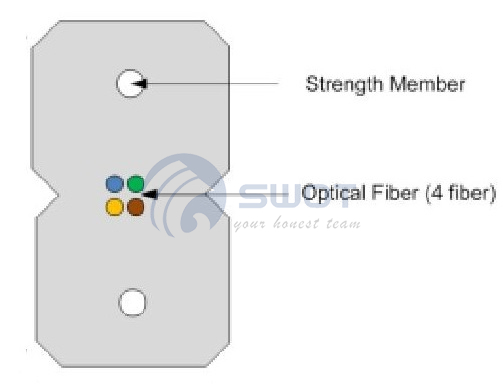

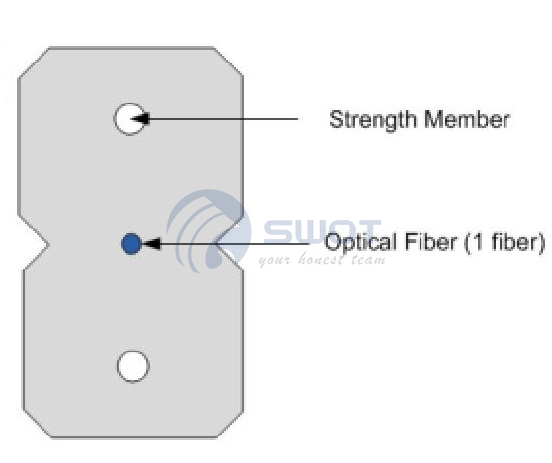

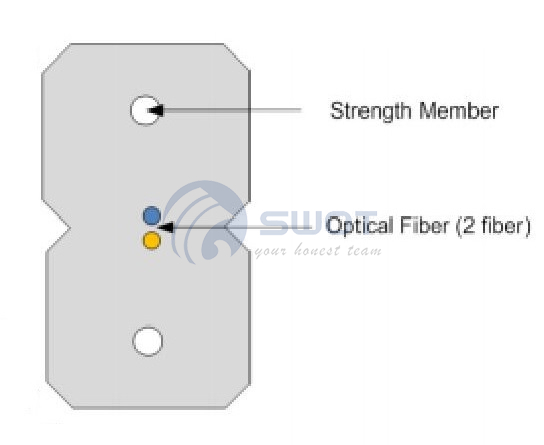

Spec OPTICAL FIBER DROP CABLE FOR FTTX2FSpec OPTICAL FIBER DROP CABLE FOR FTTX2




drop cable pigtail -1                          drop cable pigtail -4
