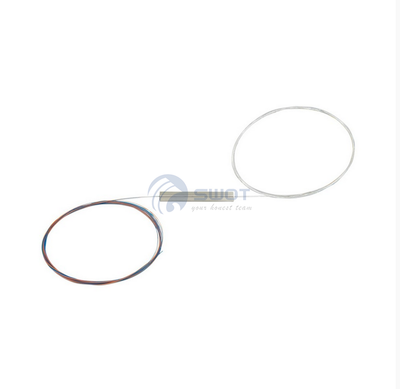

Mini Module Fiber Optic PLC Splitters



Product Type: Mini Module Fiber Optic PLC Splitters
Fiber Count: 1x2
Applications
FTTX Systems / CATV Networks








  1. Low Insertion Loss,Low PDL(Polarization Dependent Loss)

  2. Compact Design

  3. Exceptional Reliability and Stability

  4. Wide Operating Wavelength: From 1260nm to 1650nm

  5. Wide Operating Temperature: From -20°C to 70°C

  6. Conformed to RoHS



Specifications
Port Configuration1x21x31x41X61x81X121x161x321x64
Insertion Loss (dB)4.16.57.510.010.812.913.817.021.4
Loss Uniformity (dB)0.60.60.60.60.81.01.21.51.5
Polarization Dependent Loss(dB)0.20.20.20.20.20.20.250.30.4
Wavelength Dependent Loss(dB)0.30.30.30.30.30.30.50.50.5
Temperature Dependent Loss  (dB)0.40.40.40.40.40.40.50.50.5
Return Loss (dB)UPC ≥50;APC≥55
Directivity (dB)≥ 55
Operating Wavelength (nm)1260~1650
Fiber TypeG657A1 or customer specified
Operating Temperature-40~+85
Storage Temperature-40~+85


Profile Size

1x2;1x3;1x4;1x6;1x8

7x4x50mm or 7x4x60mm

1x12;1x16

12x4x60mm

1X32

20x6x80mm

1X64

40x6x100mm


Packing

1x2;1x3;1x4;1x6;1x8

200pcs/carton

1x12;1x16

100pcs/carton

1X32

50pcs/carton

1X64

20pcs/carton

packing material

plastic box

Carton Dimension (HxWxD)

430x410x405mm
