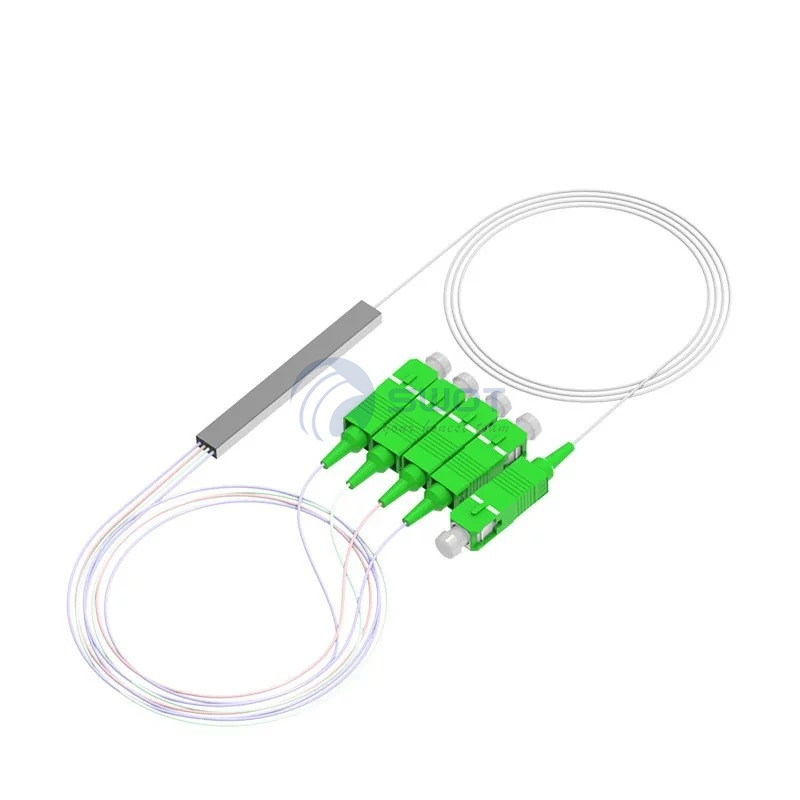

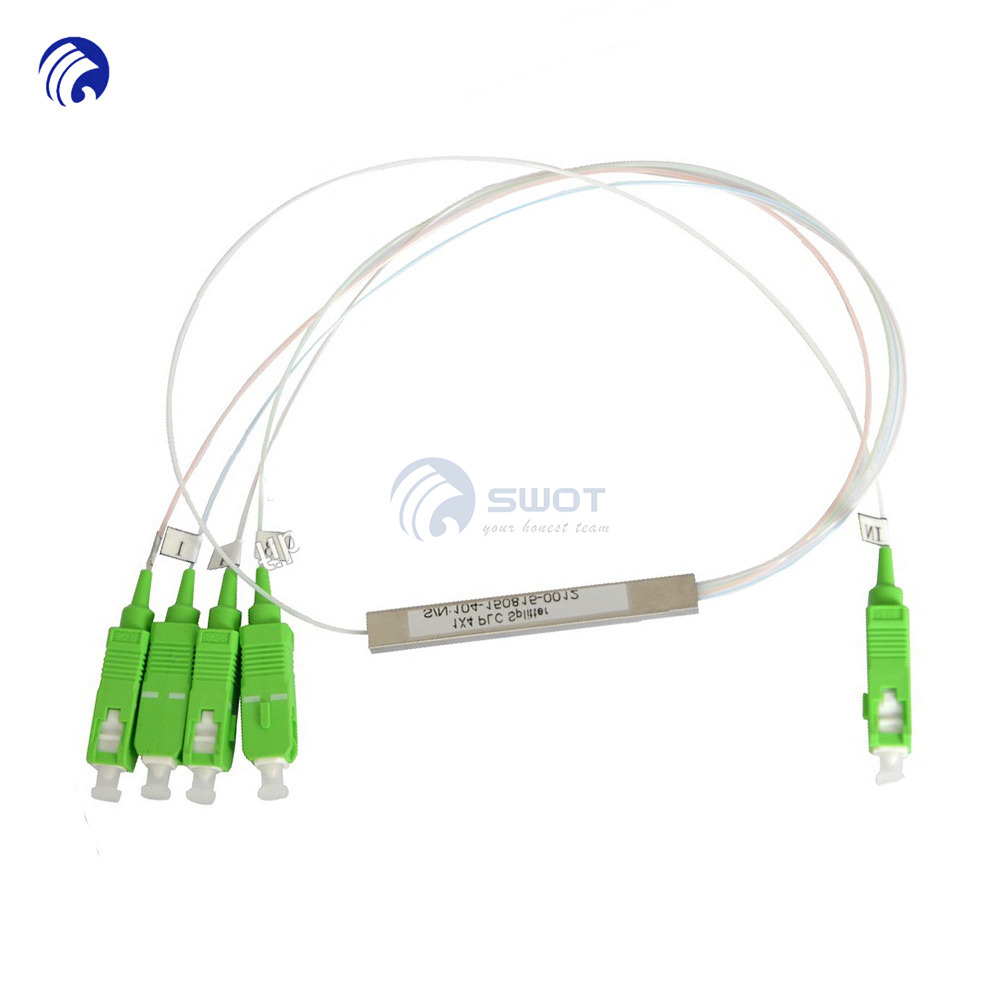

Mini Fiber Optic Splitters 1x4 SC/APC

Mini Fiber Optic Splitters 1x4 SC/APC

Home » Products » Fiber Optic Connection » Fiber Optic Splitters » Mini Fiber Optic Splitters 1x4 SC/APC

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Specifications
Port Configuration	1x2	1x3	1x4	1X6	1x8	1X12	1x16	1x32	1x64
Insertion Loss (dB)	4.1	6.5	7.5	10.0	10.8	12.9	13.8	17.0	21.4
Loss Uniformity (dB)	0.6	0.6	0.6	0.6	0.8	1.0	1.2	1.5	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.2	0.2	0.2	0.25	0.3	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Dependent Loss (dB)	0.4	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5
Return Loss (dB)	UPC ≥50；APC≥55
Directivity (dB)	≥ 55
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A1 or customer specified
Operating Temperature	-40~+85
Storage Temperature	-40~+85
