Fiber Optic Attenuator


Fiber Type: Singlemode,Multimode
Fiber Count:1 Core

Applications

l FTTX Systems

l LAN, WAN and Metro Networks

l Analog/Digital Passive Optical Networks

l CATV Networks

l Other applications in fiber optic systems

Availability:


  1. Low insertion loss,Low PDL (Polarization Dependent Loss)

  2. Excellent Temperature stability

  3. Compact Design

  4. Environment protection (ROHS Compliance)

  5. Polarization Insensitive

  6. Various connector type


Specifications



 Wavelength (nm)

SMF:1310/1550 ; MMF:850/1300

Repetitiveness (dB)

≤0.1

Attenuation range (dB)

0-15

Attenuation tolerance (dB)

0-5:±0.5     5-15:±10%

Interchangeability (dB)

≤0.2

Plug times

1000times ≤0.2

MAX Optical Power(mw)

≤200

Operating Temperature(℃)

-40~+85

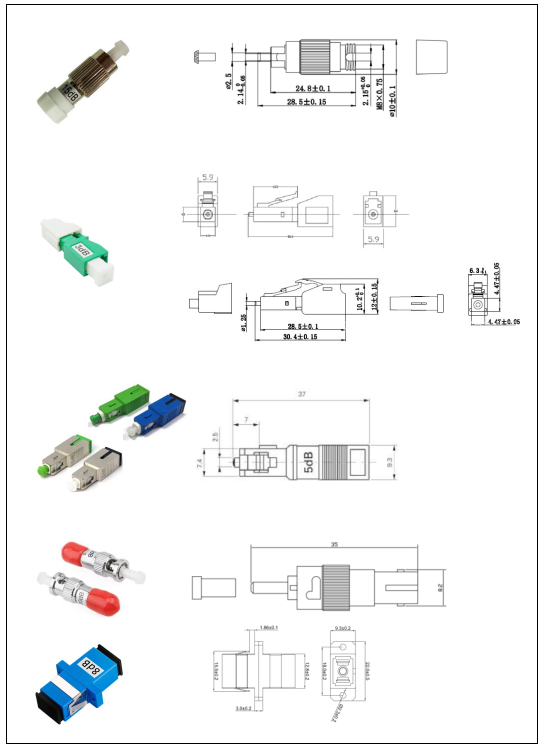

1628589316(1)



Packing



Simplex

2000pcs/carton

Weight

8.5kg

Carton Dimension

470x310x210mm
