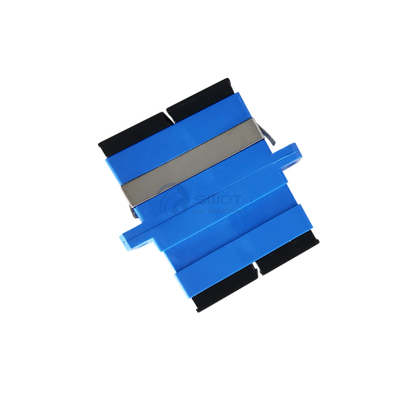

Fiber Optic Adapter SC UPC Duplex


Fiber Type: Singlemode
Fiber Count:2 Cores

Applications

l FTTX Systems

l LAN, WAN and Metro Networks

l Analog/Digital Passive Optical Networks

l CATV Networks

l Other applications in fiber optic systems

Availability:


  1. Low insertion loss,Low PDL (Polarization Dependent Loss)

  2. Excellent Temperature stability

  3. Compact Design

  4. Environment protection (ROHS Compliance)

  5. Wide Operating Wavelength: From 1260nm to 1650nm

  6. Wide Operating Temperature: From -20°C to 70°C


Specifications



Insertion loss (dB)

≤0.2

Repetitiveness (dB)

≤0.1

Interchangeability (dB)

≤0.2

Plug times

>500

Tensile strength(g)

200~600

Operating Temperature(℃)

-40~+85

Packing



Simplex

2000pcs/carton

Duplex

1000pcs/carton

Weight

8.5kg

Carton Dimension

470x310x210mm

1 (1) 1 (2) 1 (3)



Packing Type

1-2cores:2000pcs/carton

4core:1000pcs/carton

Packing material plastic box
Carton Dimension (HxWxD) 210x310x470mm
Weight 10Kg



Fiber Optic Adapter01
