Fiber Optic Adapter LC UPC Duplex


Fiber Type: Singlemode,Multimode
Fiber Count:2 Cores

Applications

l FTTX Systems

l LAN, WAN and Metro Networks

l Analog/Digital Passive Optical Networks

l CATV Networks

l Other applications in fiber optic systems

Availability:


  1. Low insertion loss,Low PDL (Polarization Dependent Loss)

  2. Excellent Temperature stability

  3. Compact Design

  4. Environment protection (ROHS Compliance)

  5. Wide Operating Wavelength: From 1260nm to 1650nm

  6. Wide Operating Temperature: From -20°C to 70°C

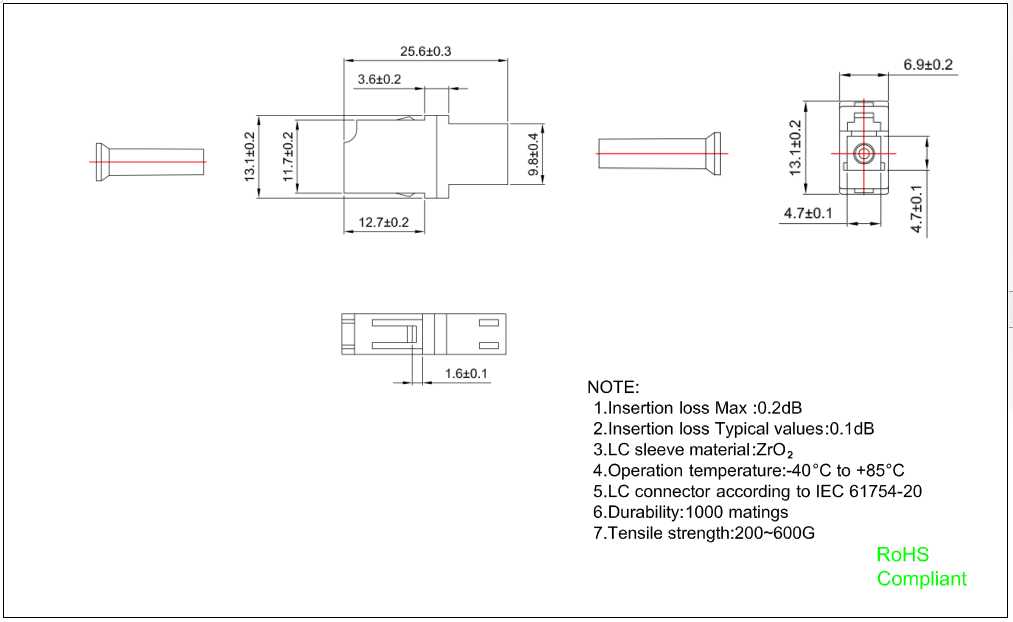

Specifications



Insertion loss (dB)

≤0.2

Repetitiveness (dB)

≤0.1

Interchangeability (dB)

≤0.2

Plug times

>500

Tensile strength(g)

200~600

Operating Temperature(℃)

-40~+85


LCLC-1



Packing



Simplex

2000pcs/carton

Duplex

1000pcs/carton

Weight

8.5kg

Carton Dimension

470x310x210mm
