Black 2U 24 port 19 Inch rack mount slide patch panel ODF
Home » Products » FTTH Opitc Equipment » ODF&Patch Panel » Black 2U 24 port 19 Inch rack mount slide patch panel ODF

Contact Us

Share to:

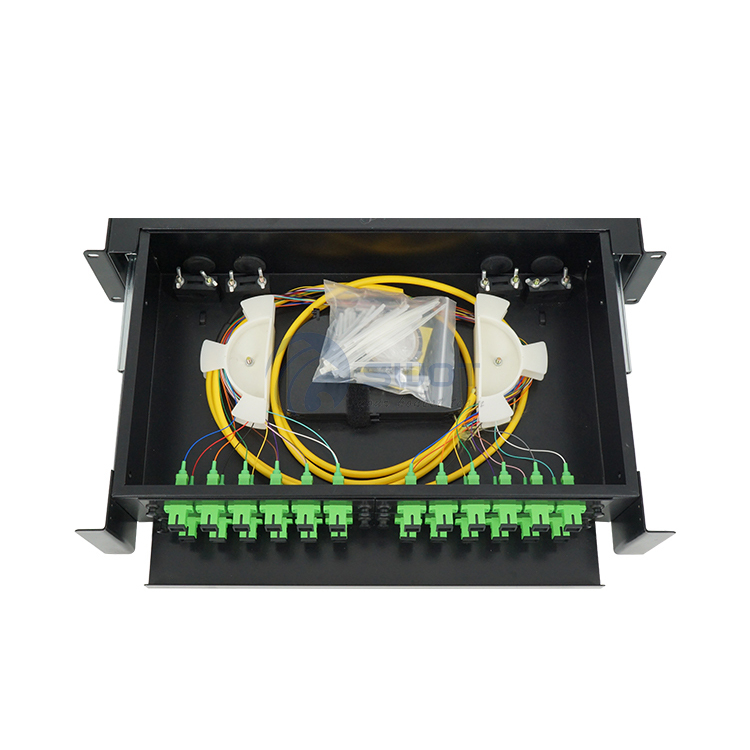

Black 2U 24 port 19 Inch rack mount slide patch panel ODF


Model No.: WB-FOPP-SR-2U-24
Fiber Count: 24 port, SC SX or LC DX
Applications
FTTX fiber wiring installation
  1. Rack mount, unique design with metal rails make the drawing easier and smoother.

  2. The unit case integrates optical fiber fusion, disk storage and wiring. Each fusion module can be extracted separately, meeting the requirements of off frame or on frame operation.
  3. Working Temperature:-20°C~+60°C.
  4. Application for FTTX fiber wiring installation.

  5. Standard:IEC 61073-1,IEC 60793,IEC 60794,IEC 60874,IEC 61754.



Product modelWB-FOPP-SR-2U-24
Connector24 SC SX or 24 LC DX
Cable entry4 port input
Size (W*D*H) mm485*270*2Umm
Splice tray 2 splice tray, 12/24F per tray
Max capacity (cores)24 cores
Quantity (pcs/carton)1 PCS
Accessories kit

Cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws

Optional
24pcs SC SX adapters
24pcs SC pigtails 1M
