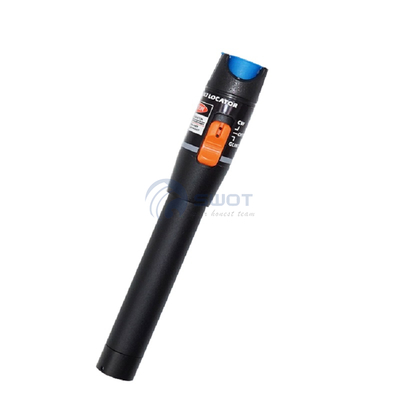

650nm Pen type Visual Fault Locator


Fiber Type: Testers &Tools
Connector type: 2.5mm universal connector, for 1.25mm connectors
  1. FC (Male)-LC (Female) convertor can be provided on requests;

  2. Operates either in CW or Pulsed;

  3. Constant output power;

  4. Lower Battery warning;

  5. Long battery life (up to 60 hours);

  6. Crash-proof and dust-proof design for laser head;

  7. Laser case ground design prevents ESD damage;

  8. Burning testing to ensure the reliability;

  9. Portable and rugged, easy to use;


Wavelength

650nm ± 10nm

Light source

FP-LD laser

Output power

1mV,3mV,5mV,10Mv,15mV,20Mv(optional)

Connector

2.5mm universal adapter

Working mode

CW or 2Hz modulation

Operating tempreture

0~+40°c

Storage tempreture

-25~+70°c

Power

2pcs AA battery

Working hours

≥60(1mW)

weight

100g(excluding batteries)

Dimension(mm)

Φ:23;L:207

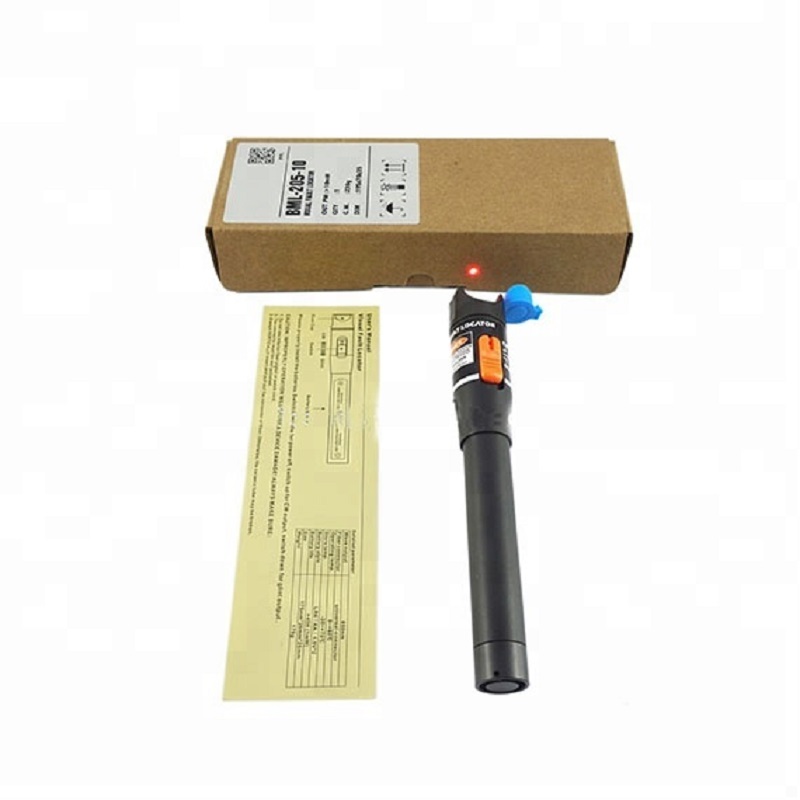

VFL 23W
