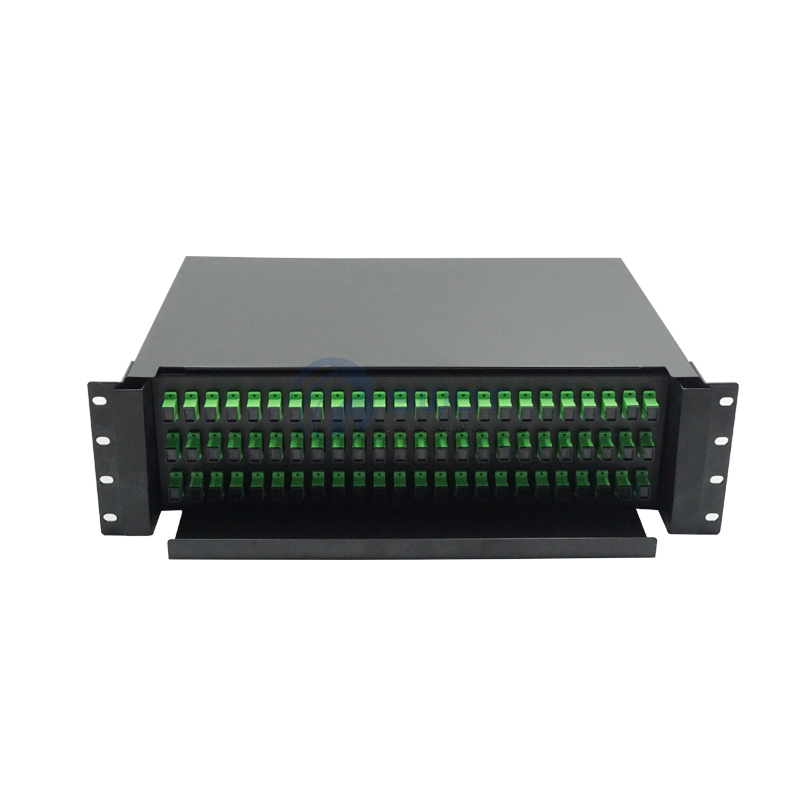

3U 72 port 19 Inch rack mount slide patch panel ODF

3U 72 port 19 Inch rack mount slide patch panel ODF

Home » Products » FTTH Opitc Equipment » ODF&Patch Panel » 3U 72 port 19 Inch rack mount slide patch panel ODF

Rack mount, unique design with metal rails make the drawing easier and smoother.
The unit case integrates optical fiber fusion, disk storage and wiring. Each fusion module can be extracted separately, meeting the requirements of off frame or on frame operation.
Working Temperature:-20°C~+60°C.
Application for FTTX fiber wiring installation.
Standard:IEC 61073-1，IEC 60793，IEC 60794，IEC 60874，IEC 61754.

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Product model	WB-FOPP-SR-3U-72
Connector type	72 SC SX or 72 LC DX
Cable entry	4 port input
Size (WDH) mm	4853303U
Splice tray	6 splice tray, 24F per tray
Max capacity (cores)	144 cores
Quantity(pcs/Carton)	1 PCS
Accessories kit	Cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
Optional	72pcs SC SX adapters 72pcs SC pigtails 1M

Product model	WB-FOPP-SR-3U-72
Connector type	72 SC SX or 72 LC DX
Cable entry	4 port input
Size (WDH) mm	4853303U
Splice tray	6 splice tray, 24F per tray
Max capacity (cores)	144 cores
Quantity(pcs/Carton)	1 PCS
Accessories kit	Cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
Optional	72pcs SC SX adapters 72pcs SC pigtails 1M
