1x32 SC/UPC ABS Module Fiber Optic PLC Splitters



Product Type: ABS Module Fiber Optic PLC Splitters
Fiber Count: 1x32
Applications
FTTX Systems / CATV Networks







Availability:


  1. Low Insertion Loss,Low PDL(Polarization Dependent Loss)

  2. Compact Design

  3. Exceptional Reliability and Stability

  4. Wide Operating Wavelength: From 1260nm to 1650nm

  5. Wide Operating Temperature: From -20°C to 70°C

  6. Conformed to RoHS



Specifications
Port Configuration 1x2 1x3 1x4 1X6 1x8 1X12 1x16 1x32 1x64
Insertion Loss (dB) 4.1 6.5 7.5 10.0 10.8 12.9 13.8 17.0 21.4
Loss Uniformity (dB) 0.6 0.6 0.6 0.6 0.8 1.0 1.2 1.5 1.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.3 0.4
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Dependent Loss  (dB) 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5
Return Loss (dB) UPC ≥50;APC≥55
Directivity (dB) ≥ 55
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Operating Temperature -40~+85
Storage Temperature -40~+85

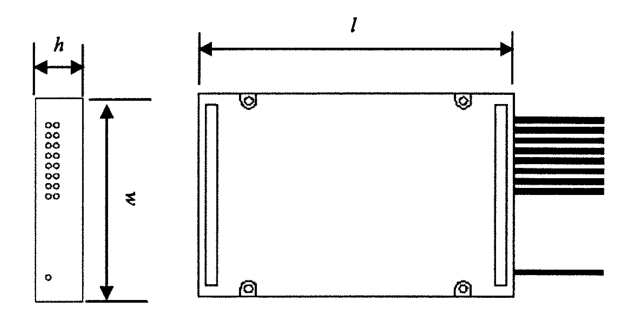

Profile Size

1x2;1x3;1x4

90x20x10mm(LxWxH)

1x2;1x3;1x4;1x6;1x8;1x12;1x16

100x80x10mm(LxWxH)

1x16;1X32

120x80x18mm(LxWxH))

1X64

141x115x18mm(LxWxH)
