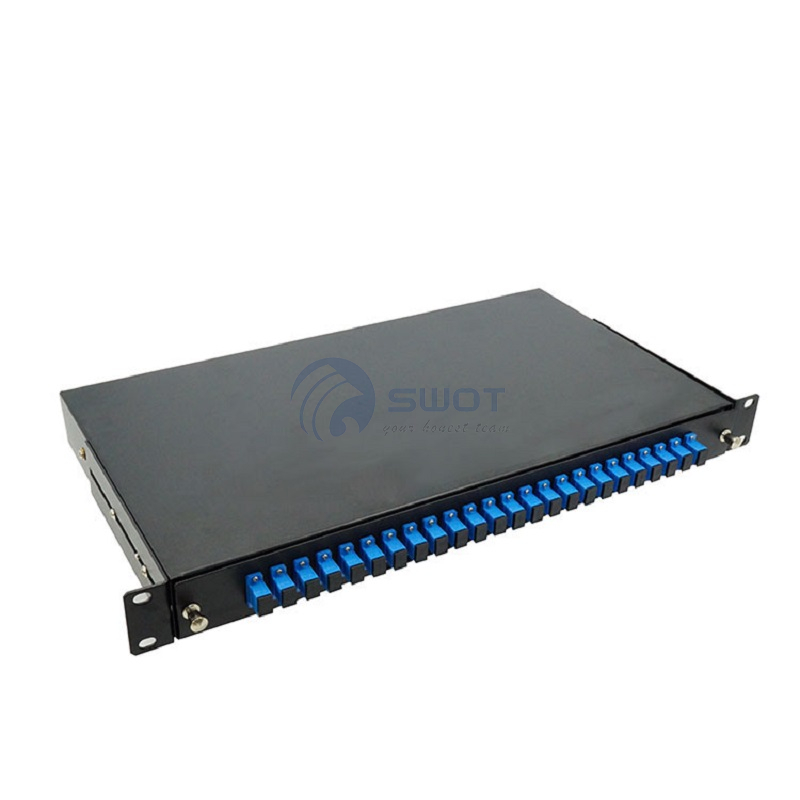

1U 24 port 19 Inch Rack Mount Slide Fiber Optic Patch Panel ODF


Model No.: WB-GPZ-SRA-1U-24
Fiber Count: 24 port, SC SX or LC DX
Applications
FTTX fiber wiring installation
  1. Rack mount, unique design with metal rails make the drawing easier and smoother.

  2. The unit case integrates optical fiber fusion, disk storage and wiring. Each fusion module can be extracted separately, meeting the requirements of off frame or on frame operation.
  3. Working Temperature:-20°C~+60°C.
  4. Application for FTTX fiber wiring installation.

  5. Standard:IEC 61073-1,IEC 60793,IEC 60794,IEC 60874,IEC 61754.



Product model

WB-GPZ-SRA-24

Connector type24 SC SX or 24 LC DX

Cable entry

4 port input

Size (W*D*H) mm

430*240*1Umm

Splice tray

1x24F per tray

Max   capacity (cores)

48 cores

Quantity(pcs/Carton)

1 PCS

Accessories kit

Cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws

Optional

24pcs SC SX adapters+24pcs SC pigtails 1M

24pcs LC DX adapters+48pcs LC pigtails 1M




ODF&Patch Panel02
ODF&Patch Panel03
