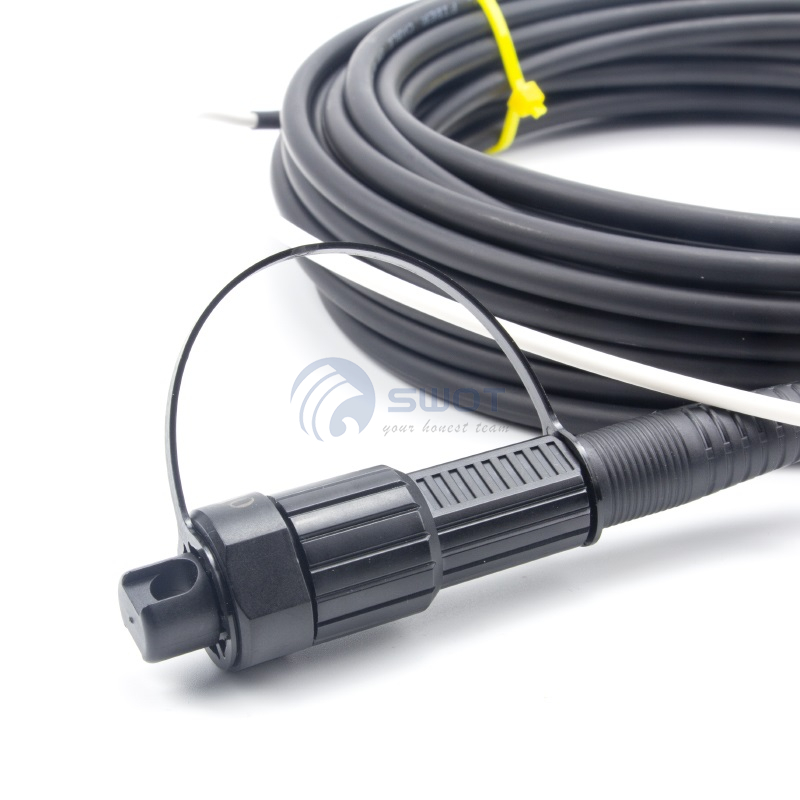

IP68 FTTA Patch Cord Pigtail Mini SC Waterproof connector


Fiber Type: G657A1/G657A2
Fiber Count: 1F
Outer Sheath Material:LSZH,TPU
Applications:
1.Fiber-to-the-Antenna (FTTA)
2.Automation and industrial cabling
3.Surveillance systems
4.Naval and ship building
5.Broadcast


  1. Cost effective solution for in house termination

  2. Low insertion loss and added loss

  3. Height of attenuation.

  4. IP68 water, dust proof and corrosion resistant

  5. The material in the jumpel cable are all-weather and UV-resistant.

  6. Mechanical performance: IEC 61754-4 standard.

  7. RoHS and REACH materials compliant.



Technical Parameters(Connector)

Standards GR-3120, GR-3152, IEC61753-1, IEC 61754-4
Insertion loss ≤0.5dB
Return loss ≥50dB(UPC),≥60dB(APC)
Repeatability ≤ 0.1
Interchangeability ≤ 0.2
Durability ≥ 1000 times
Dust Cap Max. Pulling Force 100N
Water Resistance IP68
Operating temperature -40℃ to + 85℃
Storage Temperature -40 to 85°C

Round fiber optic cable, 5.0mm

IP68 FTTA Patch Cord Pigtail 04 NO. Name Remark
1 LSZH
2 Ripcord
3 Aramid Yarn
4 Inner Sheath
5 Aramid Yarn
6 Tight Buffer
7 Fiber SM G657A1/A2
