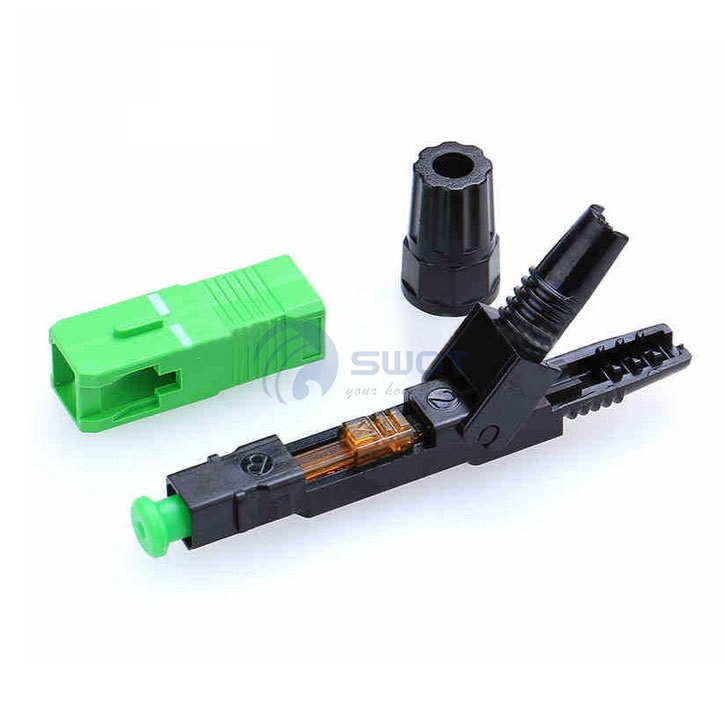

Fiber Optic Fast Connector


Fiber Type: Singlemode,Multimode
Fiber Count: 1 Core
Outer Sheath Material: 3*2 mm;0.9mm; 1.6*2mm
Applications
1.FTTX Systems
2.LAN, WAN and Metro Networks
3.Analog/Digital Passive Optical Networks
4.CATV Networks






Availability:


  1. Low Insertion Loss,Low PDL(Polarization Dependent Loss)

  2. Compact Design

  3. Exceptional Reliability and Stability

  4. Wide Operating Wavelength: From 1260nm to 1650nm

  5. Wide Operating Temperature: From -20°C to 70°C

  6. Conformed to RoHS



Optical Cable3.0 x 2.0 mm and 3.0mm
Plug TypeSC/APC;SC/UPC
Insertion Loss (dB)﹤0.5dB(0.2dB typical)
Return Loss (dB)SC/APC≥55dB;SC/UPC≥45dB
Tensile Strength﹥50N
Thermal ShockΔIL﹤0.3dB ; ΔRL﹤5dB
Reusable Time≥10 times
Operating &Storage Temperature-40~+85




Packing Type 1000pcs/carton
Packing material plastic box
Carton Dimension (HxWxD) 357x225x367mm
Weight 7.5Kg

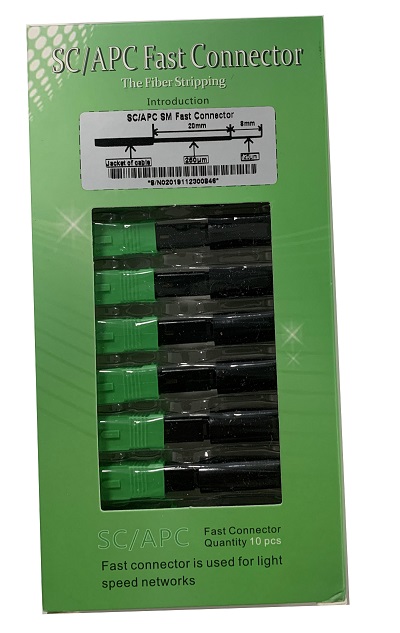

1      7c36b581b22a1adcc17cb823cd29ad2
