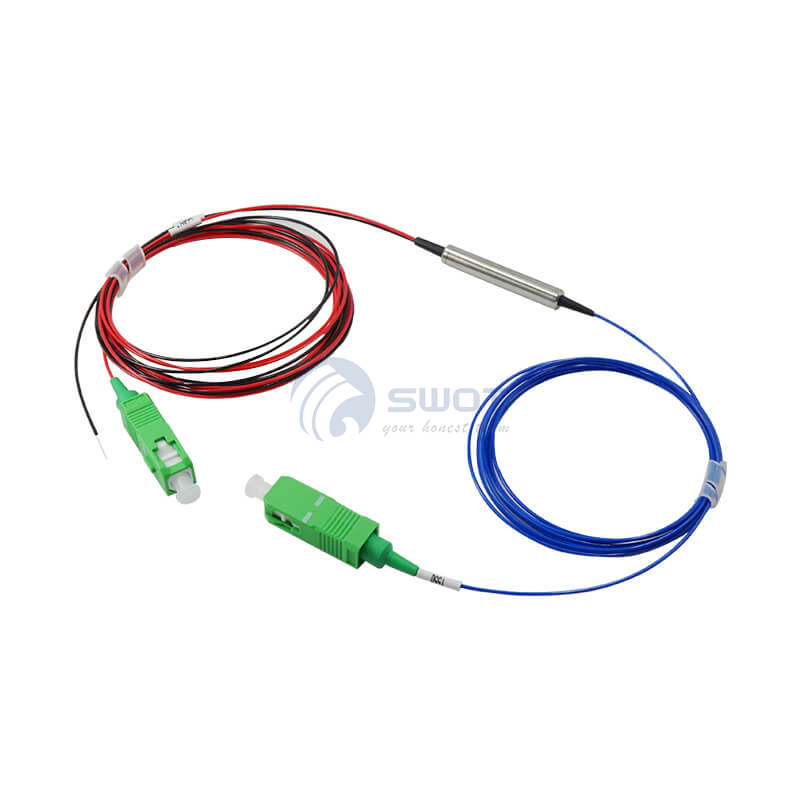

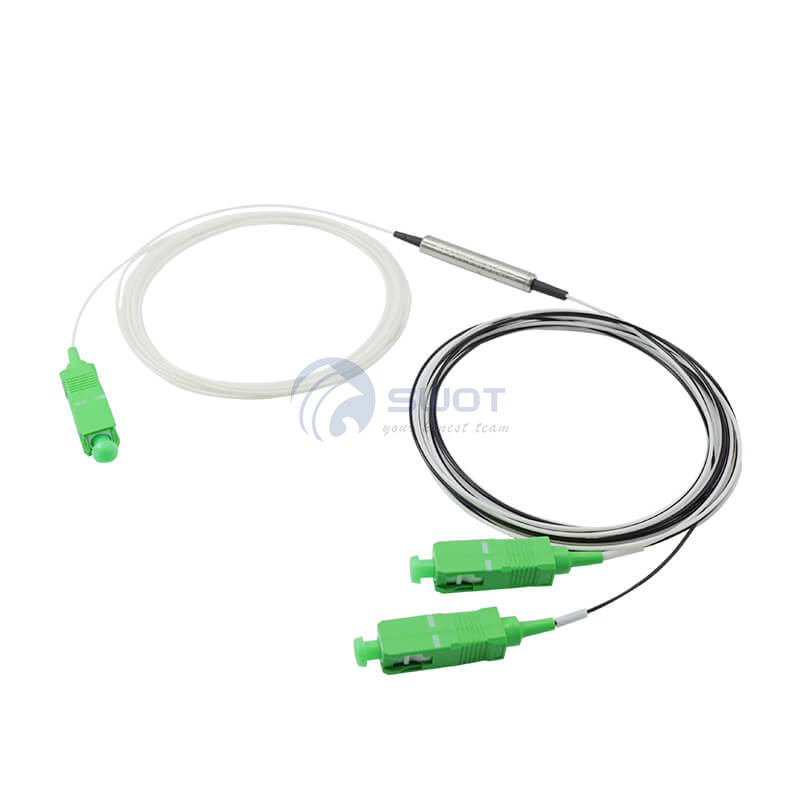

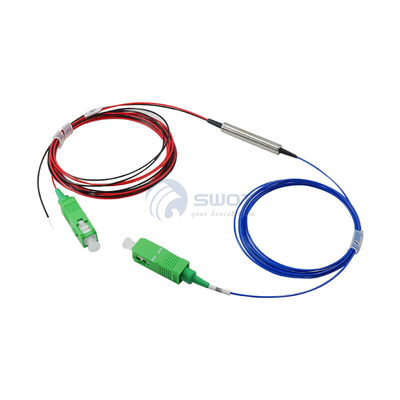

FWDM 1310/1490/1550nm Wavelength 3 Channel Optic Fiber Filte


Wave Length: 1310/1490/1550nm
Fiber Type: G657A or Customized
Applications: System Monitoring/ WDM system/ Transmitters and Fiber/ Fiber optical amplifier/ Fiber optic lnstruments

Availability:
Inquire Add to Basket

  1. Low Insertion Loss，Low PDL

  2. High channel isolation

  3. Exceptional reliability and stability

  4. Wide Operating Wavelength

  5. Wide Operating Temperature

  6. All products meet GR-1209-CORE and GR-1221-CORE requirements.





operating   wavelength

nm

T1310/

R1550

T1550/

R1310

T1310/

R1490-1550

T1490/

R1310-1550

T1550/

R1310-1490

T1490-1550/

R1310

T1310-1490

/R1550

Transmission

nm

±40

±40

±40

±10

±10

±10

±10

Reflection   h

nm

±40

±40

±10

1310±40

1550±10

1310±40

1490±10

±40

±40

Passband   Ripple

dB

≤0.30

Transmission   IL

dB

≤0.80 (0.60Typ.)

Reflection   IL

dB

≤0.60 (0.40Typ.)

Reflection   Ripple

dB

≤0.20

Transmission   Isolation

dB

≥30

Reflection   Isolation

dB

≥15

PDL

dB

≤0.05

Directivity

dB

≥50

Return   loss

dB

≥45

Operating   Temperature

℃

-5 to +70

Storage   Temperature

℃

-40 to +85

Fiber   Type


G657A or Customized

Package   Dimension

mm

Φ5.5×34(A)/ 250um bare fiber

mm

Φ5.5×39(B)/900um loose tube


Previous:
Next:

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.
Leave Message
CWDM Mux Plc Splitter Optical Module 1X6 1270~1610nm With LC Duplex Connectors
CWDM Mux Plc Splitter Optical Module 1X6 1270~1610nm With LC Duplex Connectors

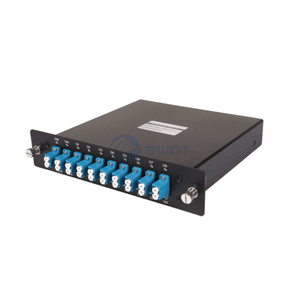

DWDM Mux Demux Rack mount Module
