CWDM Mux Plc Splitter Optical Module 1X6 1270~1610nm With LC Duplex Connectors

CWDM Mux Plc Splitter Optical Module 1X6 1270~1610nm With LC Duplex Connectors

Home » Products » CWDM/DWDM/FWDM » CWDM Mux Plc Splitter Optical Module 1X6 1270~1610nm With LC Duplex Connectors

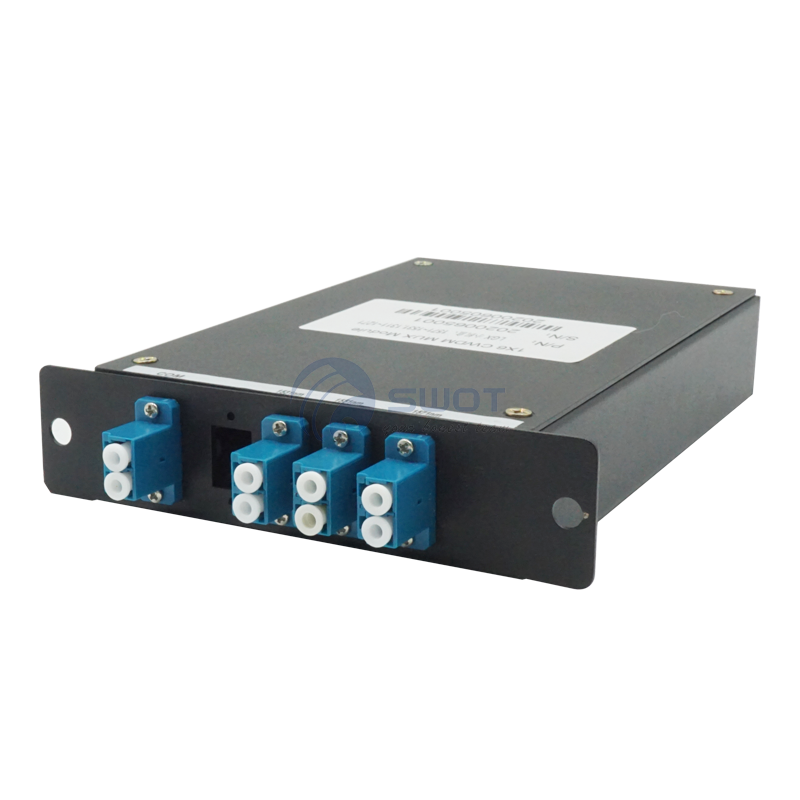

Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.
It provides low insertion loss, high channel isolation, wide passband, low temperature sensitivity and epoxy free optical path.

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

86-21-52188985

Room 202, 2 Floor, No.399 Jiaqian road, Jiading District, Shanghai

Parameter		4 Channel		8 Channel		16 Channel		18 Channel
		Mux	Demux	Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength（nm）		1270~1610/1271~1611
Center wavelength Accuracy (nm)		±0.5
Channel Spacing（nm）		20
Channel Passband (@-0.5dB bandwidth (nm)		+/-7.5/+/-6.5
Insertion Loss (dB)		≤1.5		≤2.5		≤3.5		≤3.5
Channel Uniformity (dB)		≤0.6		≤1.0		≤1.5		≤1.5
Channel Ripple (dB)		0.3
Isolation（dB）	Adjacent	>30
	Non-adjacent	>40
Insertion Loss（dB）	Express with filter	>30
	Express without filter	>12
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss（dB）		<0.1
Polarization Mode Dispersion（ps）		<0.1
Directivity (dB)		＞50
Return Loss（dB）		＞45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-40~+85
Storage Temperature (℃)		-40~+85
Package dimension (mm)(LGX box)		L155.5xW102(129)xH29
