DWDM Mux Demux Rack mount Module


Wave Length: up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm).
Fiber Type: ITU G.694.1 standard and Telcordia GR1221
Applications:
DWDM systems
Metro/Access optical network
Single direction/Bi-direction

Availability:
Inquire Add to Basket

  1. Low Insertion Loss

  2. High Isolation

  3. Low PDL

  4. Compact Design

  5. Good channel-to-channel uniformity

  6. Wide Operating Wavelength: ITU DWDM C&L Band

  7. Operating Temperature: -5℃ to 70℃; storage temperature: -40°C~ +85°C

  8. High Reliability and Stability


  1. The DWDM passive Mux Demux modules deliver the advantage of a Dense Wave Division Multiplexer in a fully passive solution.

  2. They are designed for long-haul transmission where wavelengths are packed tightly together over the C-band range of wavelengths, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). ITU G.694.1standard and Telcordia GR1221 are compliant.

  3. Our DWDM Mux Demux are modular, scalable and are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WDM, CWDM and DWDM in optical metro edge and access networks.

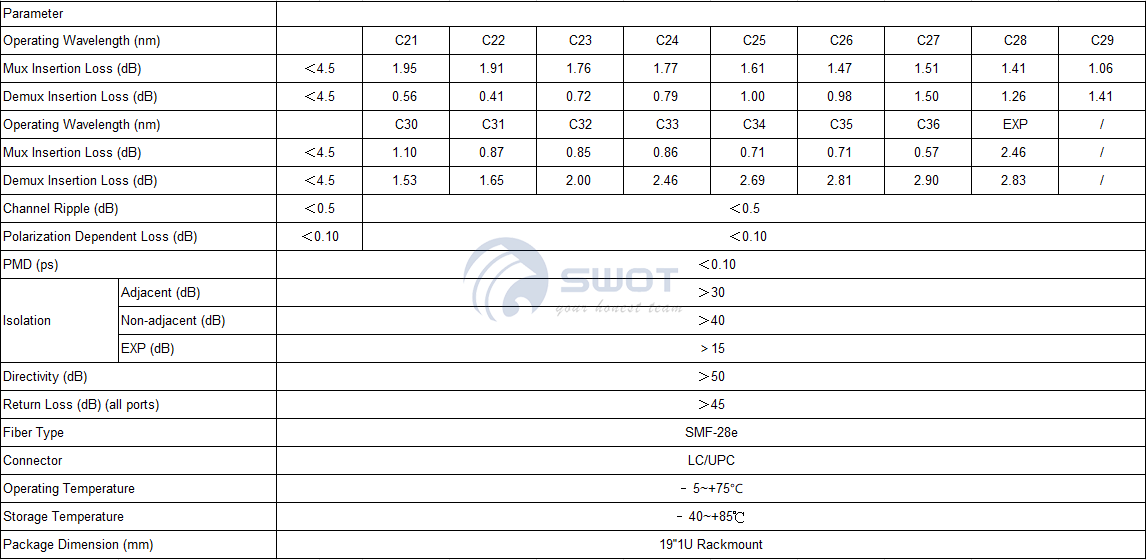

    DWDM 05
