MINI Field Installable Fast Waterproof Connector

SC/APC & SC/UPC

Model No.s: WP-FC-186

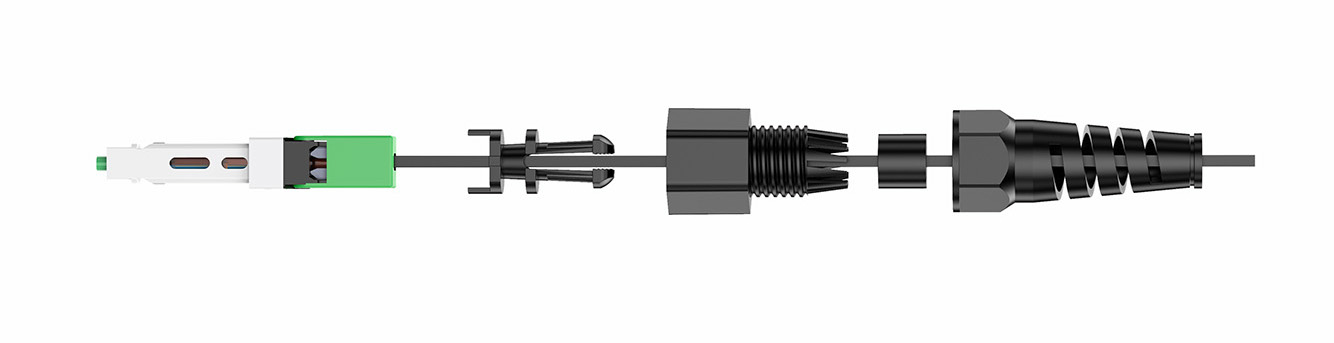

微信图片_20241209102417 微信图片_20241209102401

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

Category	Specification
Cable Scope	21.6mm/23.0mm /2.0*5.0mmflat drop cable, 5.0mm/3.0mm/2.0mm round cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	Single mode or Multi mode
Operation Time	about 15s(exclude fiber presetting)
Working wavelength	1310nm,1490nm, 1550nm
Insertion Loss	AVG≤ 0.3dB, MAX≤ 0.5dB(1310nm & 1490nm& 1550nm)
Return Loss	≥ 50dB for UPC, ≥ 55dB forAPC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL≤ 0.3dB
Mechanical Durability(500 times)	IL≤ 0.3dB
DropTest(4m concrete floor, once each direction, three times total)	IL≤ 0.3dB

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	85℃,168H	≤ 0.5	≤5	No mechanical damage, like deformation, cracking
Low TEMP	-40℃,168H	≤ 0.5	≤5
TEMP Cycling	-40~85℃,3.5H/Cle, 100C	≤ 0.5	≤5
HAST	85℃,90%RH,168H	≤ 0.5	≤5
Immersion	25℃,168H	≤ 0.5	≤5
Salt Mist	5% Nacl,6.5	≤ 0.5	≤5
Tensile	50N	≤ 0.5	≤5

Item	Model NO.s: 1901 (SC/UPC) 1903(SC/APC) Same with ESC250D
Length	52mm
Ferrules	SM/UPC / SM/APC
Inner Diameter of ferrules	125um
Insertion Loss	AVG≤0.3dB MAX≤0.5dB
Return Loss	UPC≥50dB / APC≥55dB
Working Temperature	-40~+85℃
Storage Temperature	-40~+85℃
Mating Times	500Times
Cable Diameter	DROPCABLE : 21.6mm/23.0mm /2.0*5.0mm

Category	Specification
Cable Scope	21.6mm/23.0mm /2.0*5.0mmflat drop cable, 5.0mm/3.0mm/2.0mm round cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	Single mode or Multi mode
Operation Time	about 15s(exclude fiber presetting)
Working wavelength	1310nm,1490nm, 1550nm
Insertion Loss	AVG≤ 0.3dB, MAX≤ 0.5dB(1310nm & 1490nm& 1550nm)
Return Loss	≥ 50dB for UPC, ≥ 55dB forAPC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL≤ 0.3dB
Mechanical Durability(500 times)	IL≤ 0.3dB
DropTest(4m concrete floor, once each direction, three times total)	IL≤ 0.3dB

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	85℃,168H	≤ 0.5	≤5	No mechanical damage, like deformation, cracking
Low TEMP	-40℃,168H	≤ 0.5	≤5
TEMP Cycling	-40~85℃,3.5H/Cle, 100C	≤ 0.5	≤5
HAST	85℃,90%RH,168H	≤ 0.5	≤5
Immersion	25℃,168H	≤ 0.5	≤5
Salt Mist	5% Nacl,6.5	≤ 0.5	≤5
Tensile	50N	≤ 0.5	≤5
