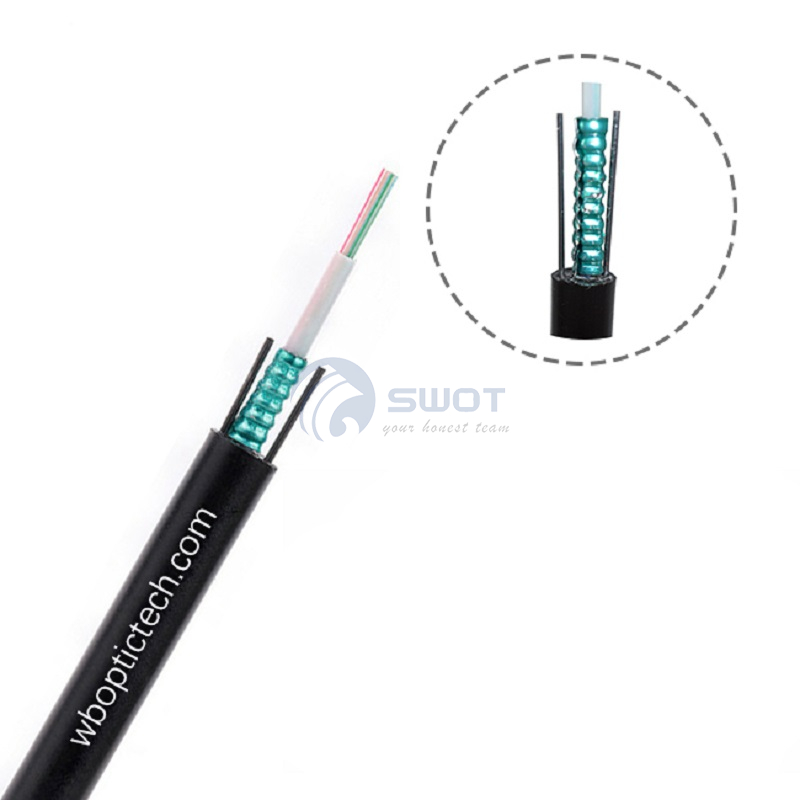

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
No. of cable | 2~24 | ||
Fiber Model | SM/MM | ||
Strength Member | Material | Steel Wire | |
Diameter(±0.05)mm | 0.8 | ||
Loose Tube | Material | PBT | |
Diameter(±0.06)mm | 3.0 | ||
Thickness(±0.03)mm | 0.4 | ||
The Max.Core NO./Tube | 24 | ||
Water Blocking layer(Material) | Water Blocking Tape | ||
Armoring | Material | Steel Strip | |
Thickness(±0.03)mm | 0.25 | ||
Outer Sheath | Material | MDPE | |
Thickness(±0.2)mm | 2.0 | ||
Cable Diameter(±0.2)mm | 9.0 | ||
Cable Weight(±5)kg/km | 70 | ||
Min. bending radius | Without Tension | 10.0×Cable-φ | |
Under Maximum Tension | 20.0×Cable-φ | ||
Temperature range (℃) | Installation | -20~+60 | |
Transport&Storage | -40~+70 | ||
Operation | -40~+70 | ||
| Fiber | Length/KM | packing size/cm |
| 2-30 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| 32-60 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| 60-72 | 2 | 100×100×70 |
| 3 | 110×110×70 | |
| 4 | 125×125×90 | |
| Packing | Wooden drum | |
