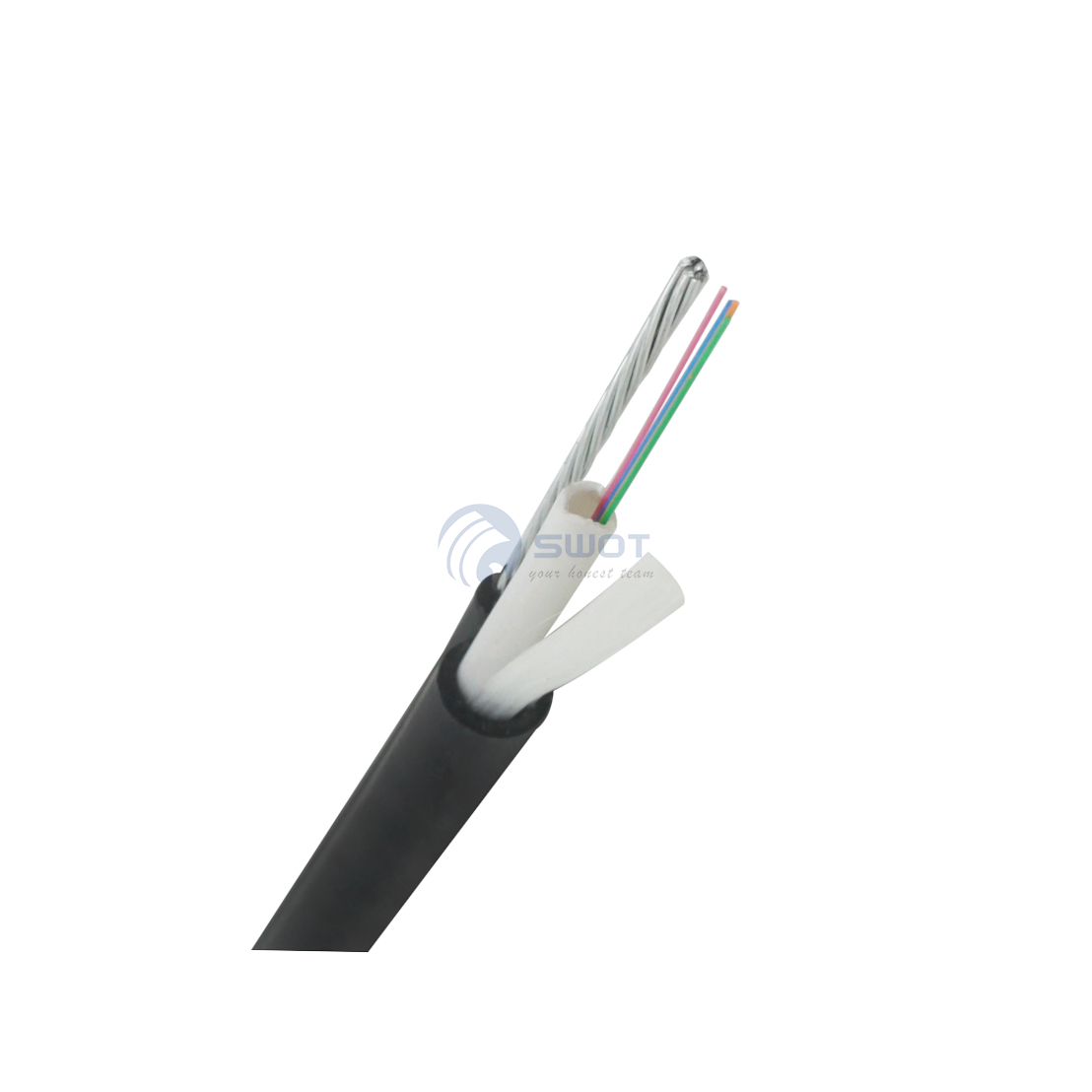

Excellent tensile strength for such small diameter.
Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties.
Small cable diameter, light cable weight, easily to install.
a steel wire messenger
Excellent tensile strength for such small diameter.
Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties.
Small cable diameter, light cable weight, easily to install.
a steel wire messenger
No. of cable | 12 | ||
Fiber Model | G.652D | ||
Loose Tube | Material(color) | LSZH(white) | |
Diameter(±0.06)mm | 2.6 | ||
Thickness(±0.03)mm | 0.45 | ||
The Max.Core NO./Tube | 12 | ||
Outer Sheath① | Material | LSZH | |
Thickness(±0.1)mm | 0.6 | ||
Diameter(±0.2)mm | 2.4 | ||
Web | Material | LSZH | |
Size(±0.1)mm | 1.0*1.0 | ||
Messenger Wire | Material | FRP | |
Size(±0.1)mm | 1.2(0.4mm*7) | ||
Outer Sheath② | Material | LSZH | |
Thickness(±0.1)mm | 1.0 | ||
Diameter(±0.2)mm | 5.0 | ||
Cable Diameter(±0.2)mm(W×H) | 5.0*8.0 | ||
Cable Weight(±5)kg/km | 37 | ||
Attenuation | 1310 nm | £0.40 | |
1550 nm | £0.30 | ||
Min. bending radius | Without Tension | 10×Cable-φ | |
Under Maximum Tension | 15×Cable-φ | ||
Temperature range (℃) | Installation | -10~+60 | |
Transport&Storage | -20~+70 | ||
Operation | -20~+70 |
No. of cable | 12 | ||
Fiber Model | G.652D | ||
Loose Tube | Material(color) | LSZH(white) | |
Diameter(±0.06)mm | 2.6 | ||
Thickness(±0.03)mm | 0.45 | ||
The Max.Core NO./Tube | 12 | ||
Outer Sheath① | Material | LSZH | |
Thickness(±0.1)mm | 0.6 | ||
Diameter(±0.2)mm | 2.4 | ||
Web | Material | LSZH | |
Size(±0.1)mm | 1.0*1.0 | ||
Messenger Wire | Material | FRP | |
Size(±0.1)mm | 1.2(0.4mm*7) | ||
Outer Sheath② | Material | LSZH | |
Thickness(±0.1)mm | 1.0 | ||
Diameter(±0.2)mm | 5.0 | ||
Cable Diameter(±0.2)mm(W×H) | 5.0*8.0 | ||
Cable Weight(±5)kg/km | 37 | ||
Attenuation | 1310 nm | £0.40 | |
1550 nm | £0.30 | ||
Min. bending radius | Without Tension | 10×Cable-φ | |
Under Maximum Tension | 15×Cable-φ | ||
Temperature range (℃) | Installation | -10~+60 | |
Transport&Storage | -20~+70 | ||
Operation | -20~+70 |
Fiber | Length/KM | packing size/cm |
2-30 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
32-60 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
60-72 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
Packing | Wooden drum |
Fiber | Length/KM | packing size/cm |
2-30 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
32-60 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
60-72 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
Packing | Wooden drum |
