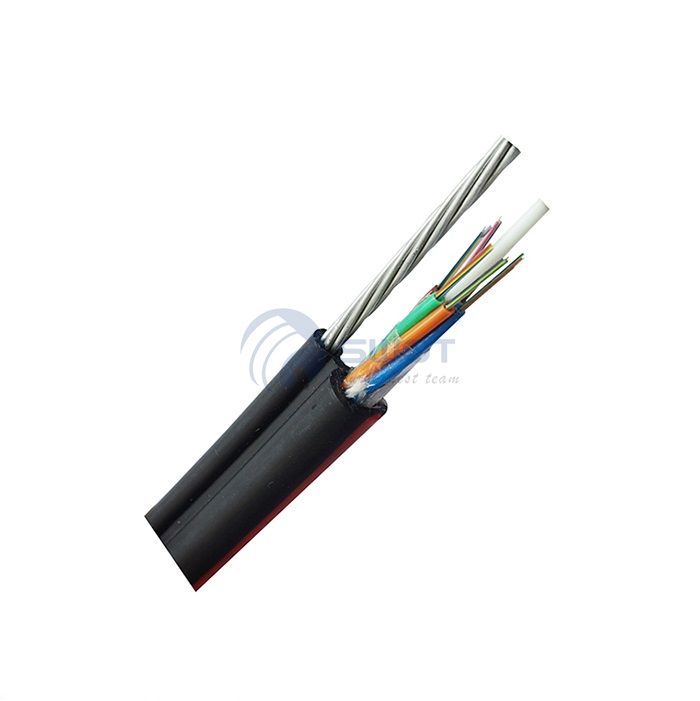

Outdoor Fiber Optic cable Figure 8 GYFTC8Y 12 CORE 24 CORE

Outdoor Fiber Optic cable Figure 8 GYFTC8Y 12 CORE 24 CORE

Home » Products » Fiber Optic Cable » Fig-8 Fiber Cable » Outdoor Fiber Optic cable Figure 8 GYFTC8Y 12 CORE 24 CORE

Excellent tensile strength
Low dispersion and attenuation
Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental properties.
Small cable diameter, light cable weight, easily to install.
a steel wire messenger

GET IN TOUCH

We generally work within a 100 mile radius of our main office . Please call us with your location to see if we can help you.

No. of cable			12	24
Fiber Model			G652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member		Material	FRP
		Diameter（±0.05）mm	1.5
Loose Tube		Material	PBT
		Diameter（±0.06）mm	1.7
		Thickness（±0.03）mm	0.32
		The Max.Core NO./Tube	6
Filler Rope		Material	PP
		Diameter（±0.06）mm	1.7
		NO.	3	1
Water Blocking Layer( Material)			Flooding Compound
Outer Sheath①		Material	MDPE
		Thickness（±0.1）mm	1.2
Outer Sheath②		Material	MDPE
		Thickness（±0.1）mm	1.8
Web		Material	MDPE
		Size（±0.1）mm	2.0*2.0
Messenger Wire		Material	Steel stranded
		Size（±0.1）mm	2.7mm（0.9mm×7）
Cable Diameter（±0.5）mm（W×H）			8.5x15.2
Cable Weight（±10）kg/km			100
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range （℃）	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70
