Availability: | |
---|---|
Non-mental design can prevent the cable from radio interference and magnetic wave interference
Specially designed compact structure is good at preventing loose tubes from shrinking
Good flexibility
High dense fiber packed, small diameter and light weight; it`s the better option for blowing installation progress.
The design life span is 30 years
Package : 2~4km/ wooden drum
Non-mental design can prevent the cable from radio interference and magnetic wave interference
Specially designed compact structure is good at preventing loose tubes from shrinking
Good flexibility
High dense fiber packed, small diameter and light weight; it`s the better option for blowing installation progress.
The design life span is 30 years
Package : 2~4km/ wooden drum
No. of cable | / | 2~12 | 12~24 | |||
Fiber type | / | G.657 | ||||
Loose Tube
| Material | mm | PBT | |||
Diameter (±0.05mm) | 1.6 | 2.4 | ||||
Thickness (±0.03mm) | 0.3 | 0.4 | ||||
Max fiber | 2-12 | 14-24 | ||||
Non metallic strength | Material | / | Aramid yarn | |||
Outer Sheath | Material | mm | HDPE | |||
Thickness | 0.5(nominal)0.40(min.) | |||||
Color | Black. | |||||
Cable Diameter(±0.2mm) | mm | 2.5 | 3.5 | |||
Cable Weight(±10.0kg/km) | kg/km | 3.5 | 4.5 | |||
Attenuation coefficient | 1310nm | dB/km | ≤0.35 | |||
1550nm | ≤0.21 | |||||
MAX. Tensile Strength | N | 120 | 150 | |||
MAX. Crush Resistance | N/ 100mm | 1000 | ||||
Min. bending radius | Without Tension | mm | 10.0×Cable-φ | |||
Under Maximum Tension | 20.0×Cable-φ | |||||
Temperature range (℃) | Installation | ℃ | -10℃+40℃ | |||
Transport&Storage | -40℃+60℃ | |||||
Operation | -30℃+50℃ |
No. of cable | / | 2~12 | 12~24 | |||
Fiber type | / | G.657 | ||||
Loose Tube
| Material | mm | PBT | |||
Diameter (±0.05mm) | 1.6 | 2.4 | ||||
Thickness (±0.03mm) | 0.3 | 0.4 | ||||
Max fiber | 2-12 | 14-24 | ||||
Non metallic strength | Material | / | Aramid yarn | |||
Outer Sheath | Material | mm | HDPE | |||
Thickness | 0.5(nominal)0.40(min.) | |||||
Color | Black. | |||||
Cable Diameter(±0.2mm) | mm | 2.5 | 3.5 | |||
Cable Weight(±10.0kg/km) | kg/km | 3.5 | 4.5 | |||
Attenuation coefficient | 1310nm | dB/km | ≤0.35 | |||
1550nm | ≤0.21 | |||||
MAX. Tensile Strength | N | 120 | 150 | |||
MAX. Crush Resistance | N/ 100mm | 1000 | ||||
Min. bending radius | Without Tension | mm | 10.0×Cable-φ | |||
Under Maximum Tension | 20.0×Cable-φ | |||||
Temperature range (℃) | Installation | ℃ | -10℃+40℃ | |||
Transport&Storage | -40℃+60℃ | |||||
Operation | -30℃+50℃ |
Fiber | Length/KM | packing size/cm |
2-30 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
32-60 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
60-72 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |

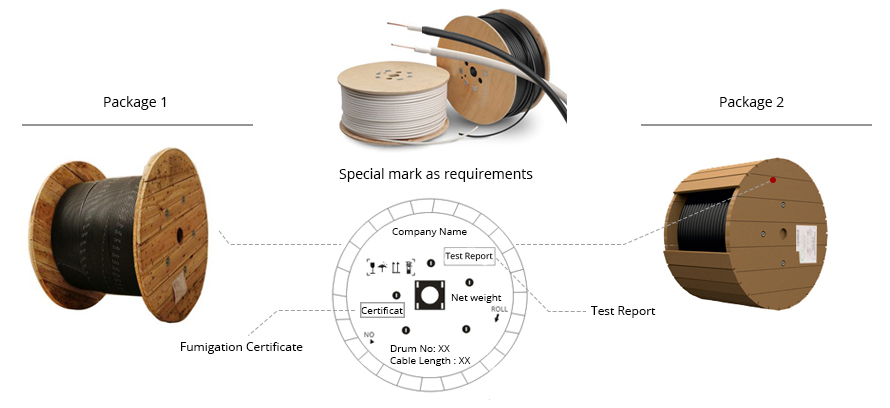

Packing | Wooden drum |
Fiber | Length/KM | packing size/cm |
2-30 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
32-60 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
60-72 | 2 | 100×100×70 |
3 | 110×110×70 | |
4 | 125×125×90 | |
Packing | Wooden drum |
