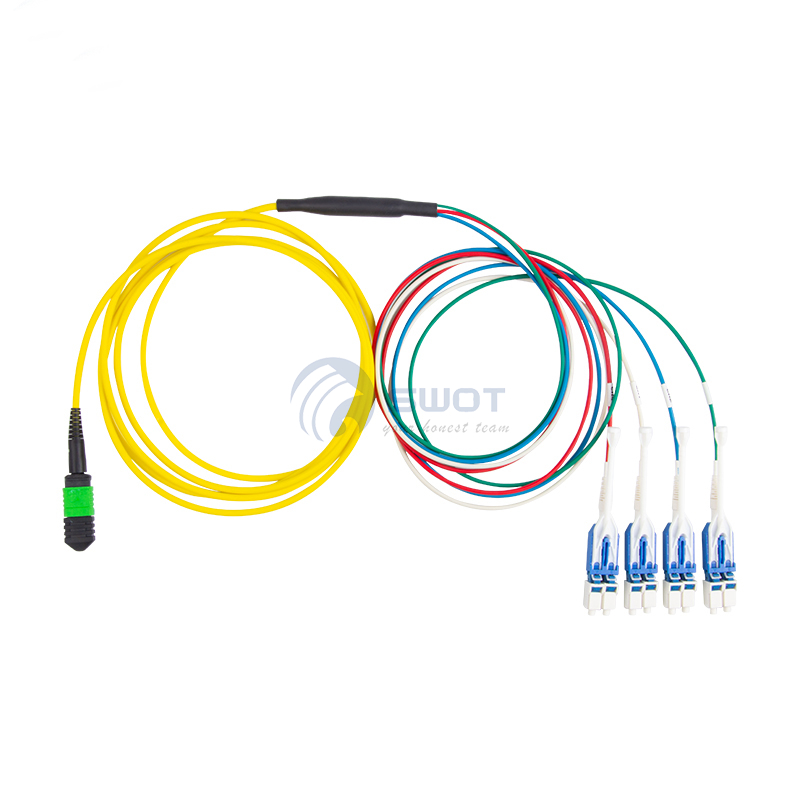

MPO&MTP Solution 8F/12F/16F/24F MPO&MTP OS2 3.0mm


Fiber Type: Single mode,Multimode,OM1,OM2,OM3,OM4
Fiber Count: 8F/12F/16F/24F
Outer Sheath Material:LSZH,OFNR,OFNP
Applications
1.Data communication network
2.Optical System Access network
3.Storage area networking fiber channel
4.High density architectures


  1. Pre-terminated and tested in factory to ensure transfer performance
  2. Rapid configuration and networking, reduce installation time
  3. Supports 40G and 100G network applications
  4. Cable Jacket material: LSZH, OFNR, OFNP available
  5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available



Physical Characteristics

Physical Characteristics
Connector Type MPO/MTP-SC/LC/FC/ST
Fiber Brand YOFC multimode fiber and SMF-28® Ultra optical fiber
Polarity Type A, Type B, Type C
Fiber type OS2(G675a)/OM1/OM2/OM3/OM4
Cores 8-144 cores
Cable Jacket

Plenum (OFNP) / Low Smoke Zero Halogen (LSZH) / Riser (PVC)


Bundle Count MPO/MTP-12 MPO/MTP-24 Trunk Diameter
2 Bundles 24 Fibers 48 Fibers 7.2mm
3 Bundles 36 Fibers 72 Fibers 9.3mm
4 Bundles 48 Fibers 96 Fibers 9.5mm
6 Bundles 72 Fibers 144 Fibers 11.7mm
8 Bundles 96 Fibers / 12.0mm
12 Bundles 144 Fibers / 17.3mm

MPO/MTP-12 cables, 2 bundles mean 24 Fibers(2x 12F) ; MPO/MTP-24 cables, 2 bundles mean 48 Fibers(2x 24F)


Color Codes

Color Codes
Cable Jackets OS2: Yellow ;OM4: violet ;OM3: Aqua;OM1/OM2:orange
Connectors

MPO:OS2: Green; Multimode: Aqua

LC: OS2: UPC Blue, APC Green; Multimode: Beige

Boots

MPO:Black;

LC: Single Mode: UPC Blue, APC Green Multimode: Beige


Optical Characteristics (IEC 61300-3)

Optical Characteristics (IEC 61300-3)
Insertion Loss

Standard:max≤0.75dB; (Typical≤0.35dB)

Elite:       max≤0.35dB; (Typical≤0.15dB)

Return Loss SMF: UPC≥50dB; APC≥60dB; MMF: ≥30dB
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Attenuation at 850 nm 3.0 dB/km
Attenuation at 1300 nm 1.0 dB/km


MPO/MTP Polarity

Fiber Optic Patch Cord MPO MTP01


Packing

Packing
Packing material  ZIP Bag
Carton Dimension (HxWxD) 460x240x550mm
