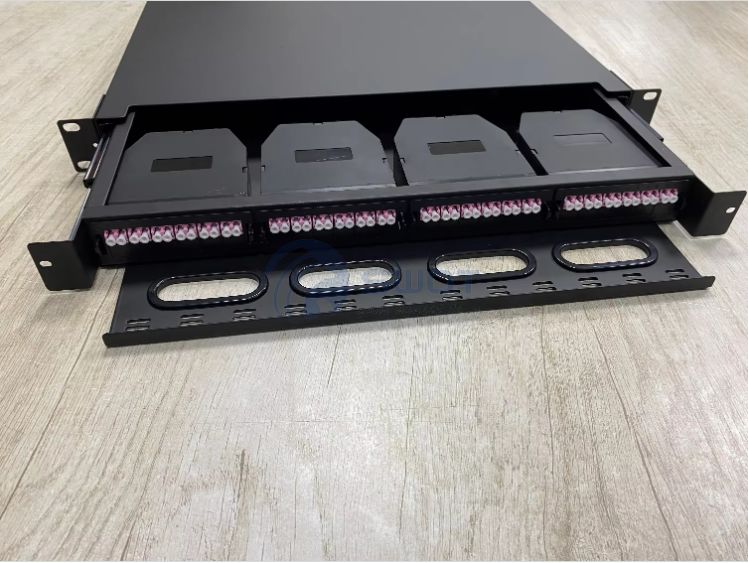

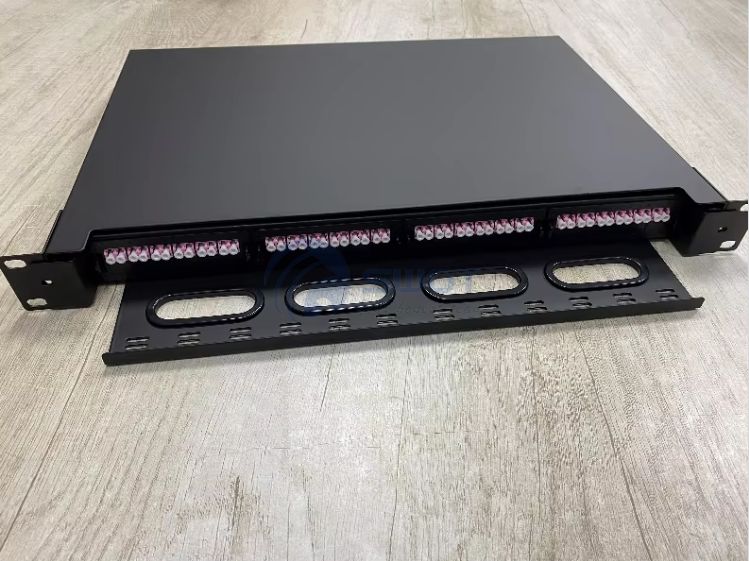

ODF PHYSICAL Characteristics：
| Model No. | WB-MPO-1U-48F -LC/UPC |
| Dimension( L×W×H ) | 483mm×350mm×44.5mm（1U） |
| Function | cable terminal - MPO |
| Adaptor type | 4pcs LGX / 24F MPO Cassettes |
| Material | Cold rolled plate （ 1.2mm , RAL 9004 Black） |
| Max capacity | 48/96F |
| Product weight | 8kg |

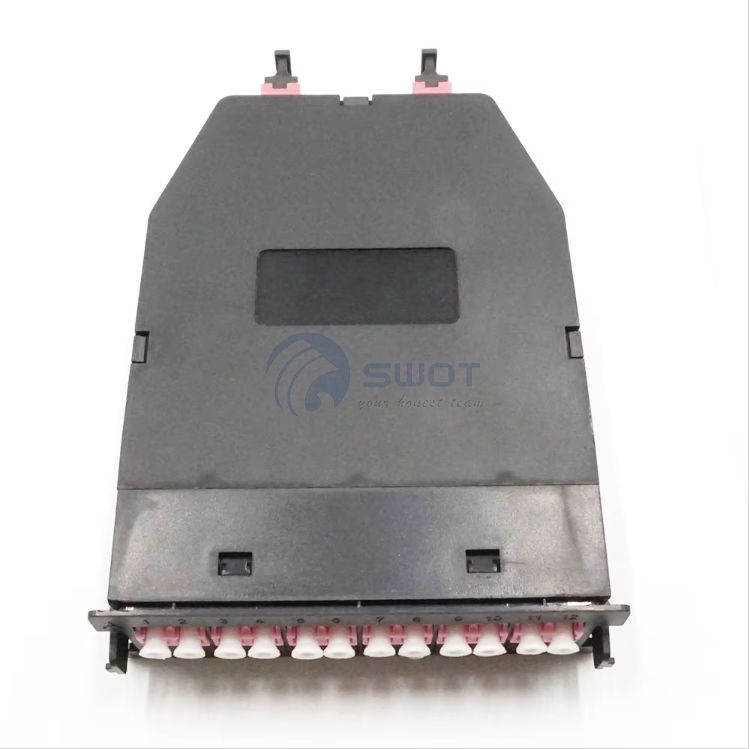

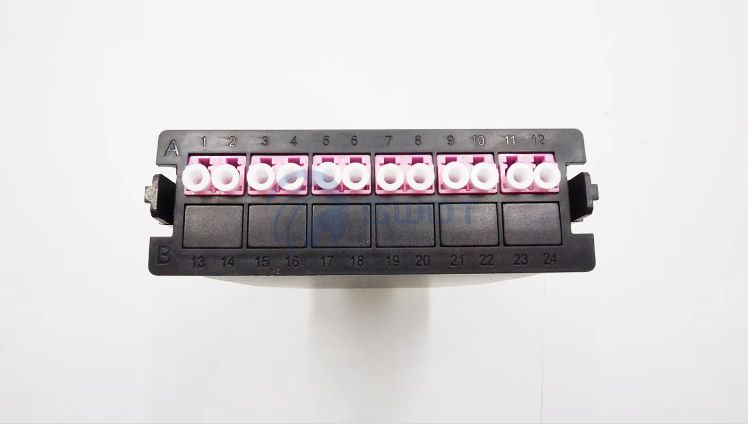

MODULE PHYSICAL Characteristics：
| Connector Type | MPO-LC/UPC |
| Fiber Brand | YOFC multimode fiber and SMF-28® Ultra optical fiber |
| Polarity | Type A, Type B, Type C |
| Fiber type | OS2(G675a)/OM1/OM2/OM3/OM4 |
| Fiber Cores | 12 / 24 cores |
| Cable Jacket | Low Smoke Zero Halogen (LSZH) |
| Adapter Color | OS2: UPC Blue, APC Green ; OM3: Aqua; OM4: violet |
| Connectors Color | MPO: OS2: Green; Multimode: Aqua
LC: OS2: UPC Blue, APC Green; Multimode: Beige |
| Cassettes Color | Black |
| Material thickness | 1.2mm |
| Working storage temperature | -25℃~+80℃ |
| Gross weight | 0.8kg |
OPTICAL Characteristics(IEC 61300-3)：
| Insertion Loss | MPO:≤0.75dB; (Typical≤0.35dB)；LC :≤0.35dB; (Typical≤0.15dB) |
| Return Loss | SMF: UPC≥50dB; APC≥60dB; MMF: ≥30dB |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Attenuation at 850 nm | 3.0 dB/km |
| Attenuation at 1300 nm | 1.0 dB/km |
