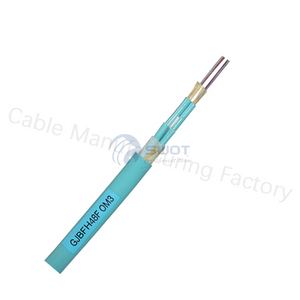

GJPFJV Indoor fiber optic cable 48 core OM3


Fiber Type: OM3
Fiber Count: 48 Core
Applications: Indoor introduction / Fiber to the home (FTTH)
Availability:
Inquire Add to Basket

  1. Low polarization sensitivity fiber

  2. Good mechanical and environmental characteristics

  3. Flame retardant characteristics meet the requirements of relevant standards.

  4. The mechanical characteristics meet the requirements of relevant stands

  5. Soft, flexible easy to splice and with big capacity data transmission


No. of cable
/
48 OM3-300
Design(Fiber×Tube)
/
4*12
Strength Member
Material
/
Aramid Yarn
Inner Sheath
Material
mm
PVC
Diameter/Thickness
(±0.03mm)
2.0/0.25
Outer Sheath
Material
mm
PVC
Thickness
(±0.2mm)
1.0
colour
aqua
Cable Diameter(±0.2mm)
mm
8.5
Cable Wetght(±10.0kg/km)
kg/km
58
Min. bending radius
During installation
mm
30.0×Cable-φ
After installation
15.0×Cable-φ
Temperature range
（℃）
Installation
℃
+0~+40
Transport&Storage
-10~+70
Operation
-40~+60


  GJBFH 03     003
