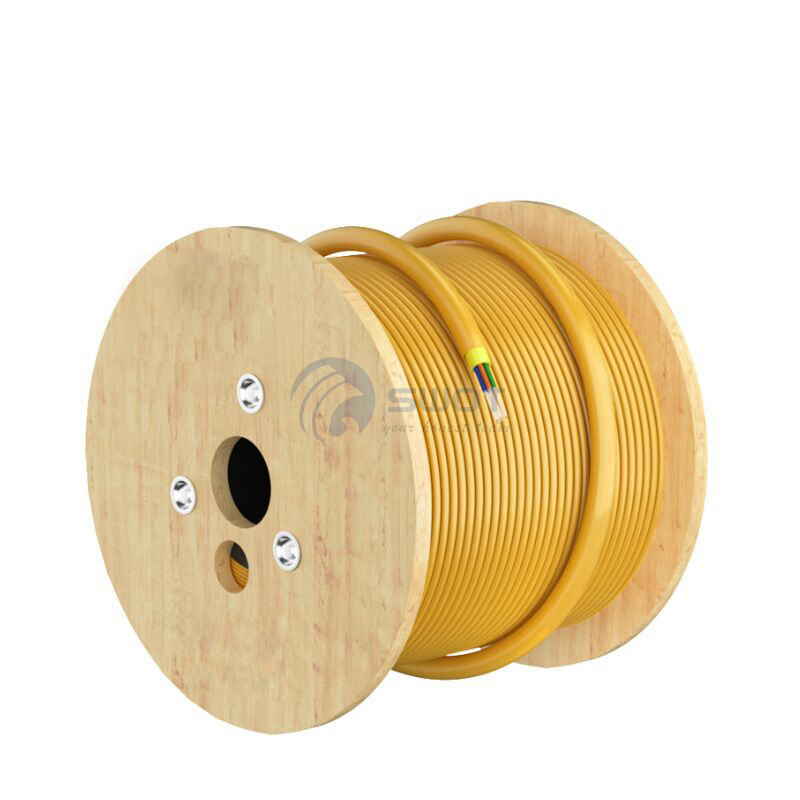

GJBFH Indoor fiber optic cable 48 core OM3


Fiber Type: OM3
Fiber Count: 48 Core
Applications: Indoor introduction / Fiber to the home (FTTH)
Availability:
Inquire Add to Basket

  1. Low polarization sensitivity fiber

  2. high quality

  3. Hight strength kevlar yarn member

No. of cable
48
Fiber Model
OM3
Unit cable
Material
LSZH
Diameter（±0.06）mm
2.8
Thickness（±0.03）mm
0.35
The Max.Core NO./cable
12
Central strength member
FRP
Outer Sheath
Material
LSZH
Color
Aqua
Thickness（±0.1）mm
0.9
Cable Diameter（±0.2）mm
8.5
Cable Weight（±5）kg/km
62
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
（℃）
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70


  GJBFH 03     003
