FTTH Outdoor Drop Cable GJYXFCH G657A 2F


Fiber Type: G657A1,G657A2
Fiber Count: 1-4 Core
Applications:
1.Indoor and outdoor introduction
2.Fiber to the home (FTTH)

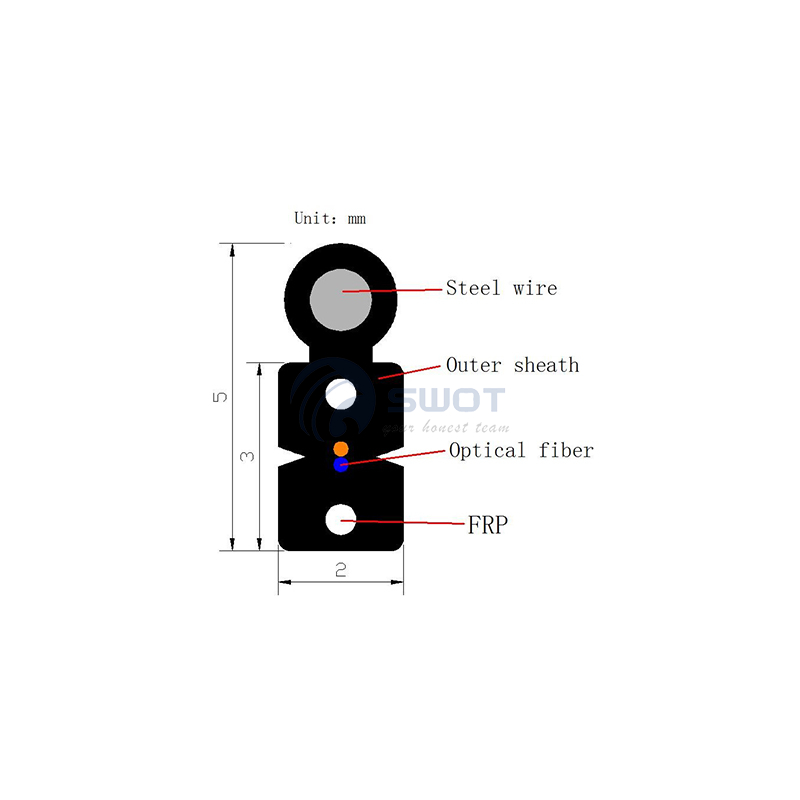

  1. High tensile of the diameter1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.

  2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

  3. Novel flute design, easily strip and splice, simplify the installation and maintenance

  4. Low smoke zero halogen and flame retardant sheath

  5. (2.0±0.2)x(5.0±0.2)mm

  6. Compliant with Telcordia GR-326-CORE specification


No. of cable

1-4 FO

Fiber Model

G.657A1

Strength     member

Material

FRP

Diameter(±0.03)mm

0.5

NO.

2

Messenger wire

Diameter(±0.05)mm

1.0

Outer Sheath

Material

LSZH

Color

Black

Cable size(±0.2)mm

2.0×5.0

Cable Weight(±2)kg/km

20

Allowable Tensile Strength

Short Term

N

600

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range (℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70
