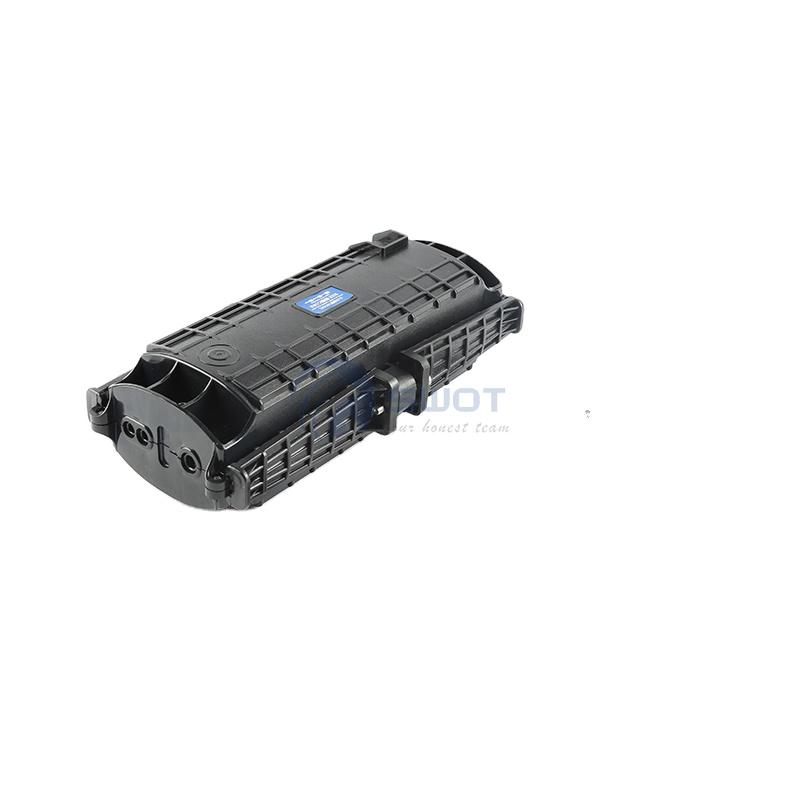

H001 Horizontal Type Fiber Optic Splice Closure


Capacity of FOSC: Bunchy:12-96(cores); Ribbon:up to 144(cores)
Cable entry ports:6 pieces
Diameter of Cable: Φ7mm~Φ16 mm
Protection level: IP68
Availability:


  1. Easy to re-enter Cable entry/exit ports

  2. Pressure testing valve and earth deriving device

  3. Intergrated seal, air tight and water proof

  4. Ideal for cable repair

  5. RoHS compliant

  6. Can be used in through, branch or mid span splice locations

  7. Suitable for aerial, underground duct or direct burial applications

  8. Material : PC

  9. IP68


Type
Fiber optic splice closure H001
Size
390mm×210mm×120mm
Scope
Pole mounting, Pedestal mounting,Strand mounting,Wall mounting
Material
PC
Color
Black
Application
FTTH FTTB FTTX Network
Protection LevelIP68


Inner packing1 pc/ctn
Inner carton size400*200*125mm
Outer packing10 pc/ctn
Outer carton size665*405*420mm
Weight (/CTN)17.5/19.5KGS
